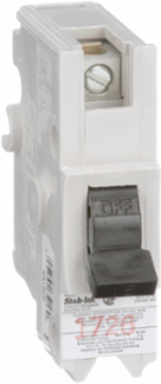

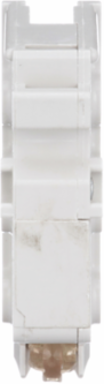

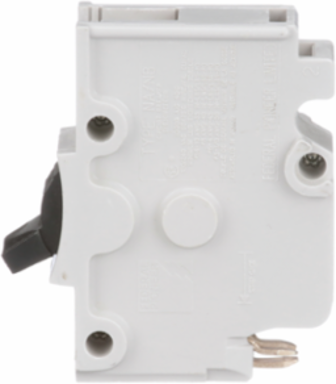

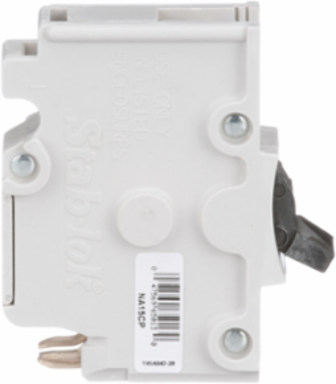

Federal Pioneer NB15 Stab-Lok Circuit Breaker - 15A, 1 Pole, 120/240V AC, Bolt-On Mounting, CSA Certified
- MPN: NB15
- UPC: 047569384165
- PPN: SCH-NB15
CAD
$92.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a one pole 15A, 120/240VAC moulded case breaker with bolt on mounting. This circuit breaker meets CSA standards.
Features
- The Schneider Electric (Federal Pioneer) NB15 is a specialized single-pole breaker designed exclusively for Federal Pioneer Stab-lok systems. Featuring a secure bolt-on mounting mechanism, it provides a more rigid and vibration-resistant connection than standard plug-in models. This makes it the essential choice for maintaining or expanding legacy residential and commercial panels widely found across Canada.
- Rated for 15 Amps at 120/240V AC, this breaker is the standard "building block" for domestic electrical systems. It is engineered to protect general-purpose branch circuits, such as lighting arrays and wall outlets, by providing reliable thermal-magnetic protection. This prevents wire overheating and potential fire hazards in your home or office.
- Equipped with a 10kA interrupting capacity (AIR), the NB15 is built to safely quench high-energy arcs during a short circuit. The thermal-magnetic trip unit offers dual-action safety: it trips slowly for sustained overloads and instantaneously for dangerous short circuits, ensuring your sensitive electronics and wiring infrastructure remain shielded from catastrophic damage.
- The NB15 features the iconic Stab-lok color-coded handle system specifically Blue for the 15-amp rating. This allows for "at-a-glance" auditing of your electrical panel, helping homeowners and electricians immediately identify the circuit capacity without needing to read small embossed text, which is especially helpful during troubleshooting or emergency power-downs.
- The NB15 is fully CSA Certified and meets the rigorous safety standards of the Canadian Electrical Code (CEC). As a genuine Schneider Electric (Federal Pioneer) product, it ensures full compliance with insurance requirements and building codes, avoiding the significant safety risks associated with uncertified "knock-off" replacement breakers.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
Product Or Component Typeminiature circuit-breaker
Complementary
- Mounting Mode
- bolt-on
- Poles Description
- 1P
- [In] Rated Current
- 15 A
- [Ue] Rated Operational Voltage
- 120/240 V AC
Breaking Capacity10 kA
Electrical Connectionscrew connector
Awg GaugeAWG 14...AWG 2 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
