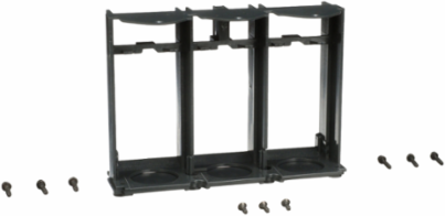

Schneider Electric LTSS3P PowerPacT L Series 3-Pole Terminal Shield, 5.51 Inch Width, 5.65 Inch Height
- MPN: LTSS3P
- UPC: 785901955344
- PPN: SCH-LTSS3P
CAD
$305.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for optimal performance in power distribution systems, this circuit breaker accessory enhances the functionality of the PowerPacT L series. With a robust three-pole configuration, it ensures reliable electrical connections while adhering to stringent safety standards, including UL 508 and CSA C22.2 No 14 certifications. The compact dimensions, measuring 5.51 inches in width and 5.65 inches in height, allow for easy installation and integration into existing setups. This terminal shield not only complies with environmental regulations, being PVC and toxic heavy metal-free, but also features a clip-on mounting mode for straightforward application. Please be aware of the associated warnings regarding chemical exposure as outlined by California Proposition 65.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth3.76 in
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL 508, CSA C22-2 No 14, IEC
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Electrical Connection
- terminal, terminals
- Mounting Mode
- clip-on
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- PowerPact L
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 5.65 in
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2543
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Number Of Poles3P
Product Or Component Typeterminal shield
ReturnabilityYes
Tightening Torque0.9-1 N.m
Warranty In Months18
Width Nominal5.51 in
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Reach Free Shvc
- Yes
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- terminal shield
Range Of ProductPowerPact L
