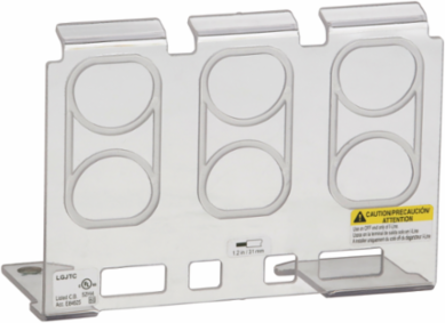

Square D LGJTC PowerPacT L Circuit Breaker Terminal Shield 3 Pole, L-Frame
- MPN: LGJTC
- UPC: 785901504658
- PPN: SCH-LGJTC
- UNSPSC: 39121112
CAD
$1109.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This terminal shield is used with PowerPacT L circuit breakers. This shield is used with 3 pole systems.
Features
- I-Line power distribution panelboard is the most versatile on the market
- Capable of feeding large motor loads and are utilized in almost every market segment
- Fully rated and series rated systems available
- Well suited to rearranging circuits
- Interior, front and circuit breakers require only a screwdriver for installation
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | terminal cover |
| Returnability | No |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Local Publishable Date | 2025-11-13 |
|---|---|
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Circuit Breaker Type | L-Frame |
| Product Destination | circuit breaker OFF end |
| Range Of Product | I-Line |
| Sustainable Packaging | No |
| Customs Code | 3926909989 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Environmental Disclosure | ENVPEP1407017EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1407017EN |
General Attributes
| Product Or Component Type | terminal cover |
|---|
| Range Of Product | I-Line |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
