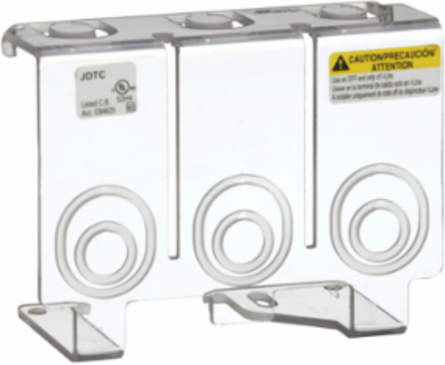

Square D JDTC I-Line Terminal Shield for PowerPacT J Circuit Breaker, 250A, 3 Pole
- MPN: JDTC
- UPC: 785901425168
- PPN: SCH-JDTC
CAD
$481.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This terminal shield is used with PowerPacT J circuit breakers. Rated at 250A and 3 pole.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Line Rated Current | 250-250 A 3P |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | I-Line |
| Sustainable Packaging | No |
| Package Weight(Lbs) | 45.359 g |
| Warranty (In Months) | 18 |
| Local Publishable Date | 2025-11-13 |
|---|---|
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Circuit Breaker Type | J-frame |
| Product Or Component Type | terminal shield |
| Returnability | Yes |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 3926909989 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | terminal shield |
|---|
| Range Of Product | I-Line |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
