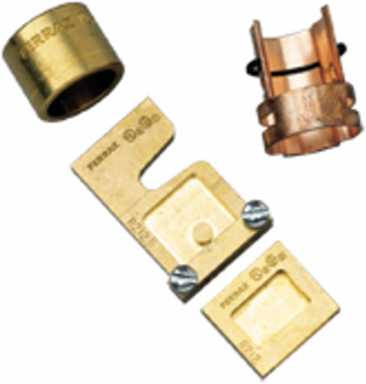

Mersen 166 Class H & K Fuse Reducer - 600 VAC, 600 VDC, 50 kA, CSA & UL Certified
- MPN: 166
- UPC: 782001752347
- PPN: FER-166
CAD
$40.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
Features
- The Mersen 166 fuse reducer provides a precise, physical fit that lets you install a lower-rated 60A fuse directly into 100A fuse clips. This eliminates the massive expense of replacing an entire safety switch or commercial panelboard when down-sizing your electrical circuits.
- Engineered specifically for heavy-duty commercial and industrial environments, this non-rejection fuse reducer handles up to 600V AC power configurations seamlessly. It allows maintenance electricians to optimize overcurrent protection across high-voltage motor branches and feeders without compromising the structural integrity of the branch circuit.
- Designed for broad physical compatibility, this adapter accommodates standard Class H, Class K, and Class R fuses within traditional Class H or K fuseblocks. This versatile design ensures service technicians can adapt varying historical fuse types to legacy infrastructure without needing custom modifications.
- This commercial-grade accessory is fully UL Listed (Guide No. IZZR) and CSA Certified, assuring inspectors that your industrial control panels remain up to standard. The rugged construction maintains an ultra-secure mechanical grip on power distribution clips, avoiding dangerous arc flashes, high-resistance hot spots, or voltage drops.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 VAC
- Fuse Classes Compatible
- Class H, Class K, Class R, Class J
- RoHS Compliance
- Consult Technical Services
- Lead Free
- Consult Technical Services
Interrupting Rating50 kA
Standards250V and 600V Class H, K, and R - UL Listed Guide No. IZZR, CSA Certified
CE ComplianceConsult Technical Services
