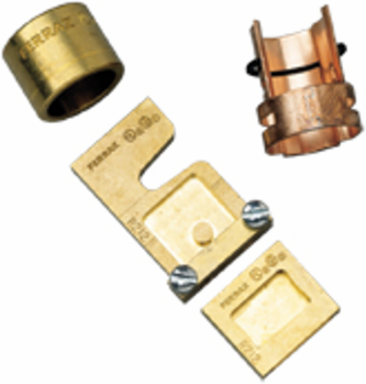

Mersen R166 Fuse Reducer, 100A to 60A, Class R, 600V AC/DC, Standards Compliant
- MPN: R166
- UPC: 782001752477
- PPN: FER-R166
CAD
$43.06
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
Features
- Engineered to seamlessly adapt existing 100-amp, 600V clips to safely accept smaller 60-amp fuses, this reducer eliminates the need for expensive, time-consuming hardware swap-outs. By stepping down the fuse capacity within your existing enclosure, facility electricians can instantly improve dedicated circuit protection for newly installed, lower-draw motors or upgraded industrial machinery.
- Featuring a specialized mechanical rejection profile, this adapter strictly accepts Class R current-limiting fuses while actively blocking the insertion of lower-tier, non-rejection fuses like Class H or K. This built-in fail-safe guarantees your electrical panel retains its high-performance overcurrent protection, safeguarding valuable downstream equipment from catastrophic faults while maintaining strict compliance with NEC and CEC electrical codes.
- Built to operate flawlessly alongside high-interrupting Class R fuses, this robust fuse reducer easily maintains a massive 200,000 Amp SCCR across heavy-duty 600VAC and 600VDC commercial circuits. It safely channels dangerous short circuits without mechanically deteriorating, giving maintenance crews complete confidence when retrofitting critical high-voltage switchgear.
- Fully UL Listed and CSA Certified, these professional-grade fuse adapters ensure your modified electrical distribution panels easily pass rigorous local safety inspections. Trusting OEM-tested, code-compliant Mersen accessories protects your facility from operational liability and guarantees highly reliable power delivery without the massive downtime required to completely rewire a motor control center.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Class
- R
- UL Certification
- E105670 IZZR.E105670
- RoHS Compliance
- Consult Technical Services
Amperage60A to fit 100A
CSA Certification6225-01 207417
Lead FreeConsult Technical Services
CE ConformityConsult Technical Services
