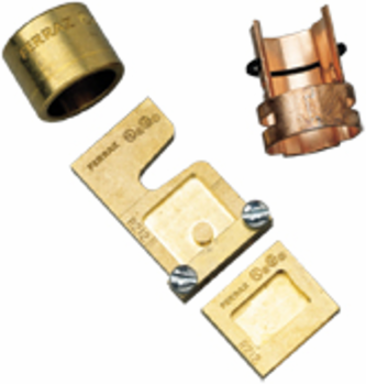

Mersen J216 Class J Fuse Reducer, 600V AC/DC, 200 kA SCCR, UL & CSA Certified
- MPN: J216
- UPC: 782001753474
- PPN: FER-J216
CAD
$80.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
Features
- The Mersen J216 fuse reducer is engineered to cleanly bridge the physical gap between different current thresholds, allowing a smaller 100A Class J fuse to seat perfectly into standard 200A clips. This eliminates the massive labor and hardware costs of replacing entire high-amp switch blocks or safety disconnect units when circuit requirements downsize.
- Rated for high-voltage industrial circuits up to 600VAC, this rejection-type component safely maintains full circuit integrity and system coordination. It is fully compatible with ultra-fast acting or time-delay fuses, safeguarding sensitive downstream assets like motors and branch circuits without introducing vulnerability.
- These specialized Class J reducers are intentionally crafted for clip-in installations to maximize versatility, which means they are not designed for direct bolt-on configurations. This targeted design streamlines clip-in integration across a vast range of standard distribution panels, switchgear, and commercial motor control centers.
- Fabricated by Mersen Canada Toronto with official UL Listed and CSA Certified distinctions, this component guarantees absolute compliance with local electrical codes and strict facility standards.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Short Circuit Current Rating
- 200 kA
- UL Certification
- UL Listed Guide No. IZZR E105670
- Standards
- UL Listed Guide No. IZZR, CSA Certified for 600V Class J, 30-600A
- Lead Free
- Consult Technical Services
Amperage Range30 to 600 A
ClassJ
CSA Certification6225-01 207417
CE ConformityConsult Technical Services
ROHS CompliantConsult Technical Services
