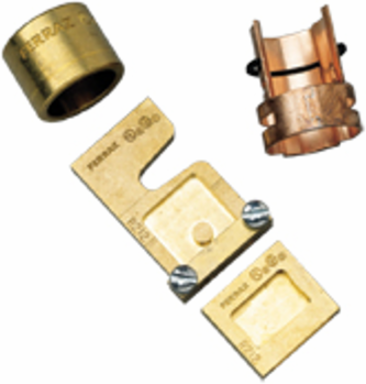

Mersen R162 Class R Fuse Reducer 600 VAC 600 VDC, 200 kA SCCR, UL and CSA Certified
- MPN: R162
- UPC: 782001752385
- PPN: FER-R162
CAD
$25.26
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
Features
- This heavy-duty fuse reducer allows you to safely install lower-rated fuses into existing high-amperage clips, saving you the labor and expense of replacing the entire fuse block. By downsizing your overcurrent protection to closely match a specific motor's actual nameplate current, you drastically improve circuit sensitivity and prevent expensive equipment burnouts during sustained low-level overloads.
- This precision-machined component is engineered to perfectly adapt a standard 100-Amp fuse clip to securely hold a 60-Amp (at 250V) fuse. The tight, high-tension fit minimizes electrical resistance at the contact point, preventing dangerous localized heating and ensuring reliable power flow to your commercial HVAC systems, pumps, or industrial machinery.
- Designed specifically as a rejection-type reducer, this adapter physically blocks the installation of dangerous, non-current-limiting Class H or K fuses into your system. This critical mechanical fail-safe ensures your electrical panel maintains its proper protective rating, guarding facility personnel against severe arc flash hazards and simplifying routine maintenance for your technicians.
- Fully UL Listed and CSA Certified, this rugged fuse reducer meets rigorous North American standards for high-voltage industrial safety. Capable of supporting a massive 200,000 Amp Short Circuit Current Rating (SCCR) when paired with the correct Class R time-delay fuse, it guarantees that your power distribution upgrades easily pass strict local electrical code inspections.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 VAC, 600 VDC
- Amperage
- 60 A to 100 A
- UL Certification
- E105670 IZZR.E105670
- Standards
- UL Listed Guide No. IZZR, CSA Certified
- ROHS Compliant
- Consult Technical Services
Short Circuit Current Rating (SCCR)200 kA
Fuse Class CompatibilityClass R
CSA Certification6225-01 207417
CE ConformityConsult Technical Services
Lead FreeConsult Technical Services
