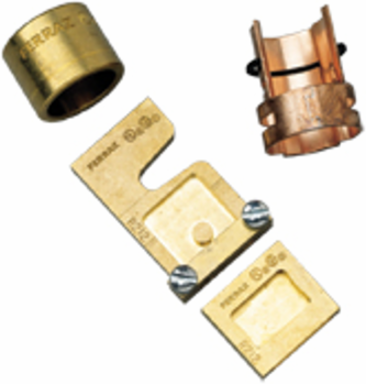

Mersen R636 Class R 60-30A Fuse Reducer with 600 VAC, 600 VDC, SCCR 200 kA
- MPN: R636
- UPC: 782001752460
- PPN: FER-R636
CAD
$19.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
Features
- The Mersen R636 is a specialized fuse reducer designed to allow a 30-Amp fuse to be installed into an existing 60-Amp fuse clip. This is a critical tool for Canadian industrial electricians who need to downsize circuit protection—for example, when a motor has been replaced with a more efficient, lower-amperage model—without the expensive and time-consuming process of replacing the entire 600V fuse block.
- This is a Rejection-type reducer, specifically engineered for Class R fuses. It features a unique physical profile that ensures only high-interrupting Class R fuses can be used. This prevents the dangerous accidental installation of older, non-current-limiting Class H or K fuses, ensuring your panel remains fully compliant with the Canadian Electrical Code (CEC) safety mandates.
- The R636 is fully rated for 600V AC systems. Its rugged construction ensures it can handle the thermal and mechanical stresses of high-voltage industrial distribution. By utilizing these reducers to install closer-rated time-delay fuses (like the Mersen TRS-R series), you can significantly improve the protection of sensitive motor windings and controllers.
- When used with Class R fuses, the R636 maintains a massive 200,000 Amp (200kA) short-circuit current rating (SCCR). This ensures that the reducer itself does not become a weak point in your electrical system, safely withstanding the extreme energy of a short circuit in high-capacity Canadian industrial facilities.
- The R636 is designed for a fast, "snap-in" fit. It essentially acts as an adapter that slides onto the ends of a 30A fuse, extending its physical dimensions to match those of a 60A fuse. This allows for immediate on-site configuration changes during maintenance windows, reducing downtime and eliminating the need for specialized tools or panel modifications.
Specifications
Product Details
- AC Voltage
- 600 VAC
- Lead Free
- Consult Technical Services
- Standards
- 250V and 600V Class H, K, and R - UL Listed Guide No. IZZR, CSA Certified. 600V Class J - UL Listed Guide No. IZZR, CSA Certified 30-600A
- SCCR
- 200 kA
- DC Voltage
- 600 VDC
CE conformityConsult Technical Services
ClassR
UL CertificationE105670 IZZR.E105670
ROHS CompliantConsult Technical Services
CSA Certification6225-01 207417
