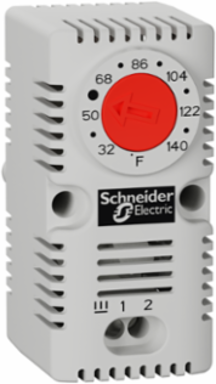

Schneider Electric NSYCCOTHCF ClimaSys CC Simple Thermostat 250V, 0-60 C, NC, IP20
- MPN: NSYCCOTHCF
- PPN: SCH-NSYCCOTHCF
CAD
$95.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for precision and reliability, this thermostat from Schneider Electric provides effective climate control within enclosures, operating within a range of 0-60 C and rated for 250V. Its normally closed (NC) configuration enhances safety and energy efficiency, making it suitable for various electrical applications. With an IP20 rating, this device is designed for use in indoor environments, ensuring optimal temperature regulation to protect sensitive components within enclosures. Whether for industrial or commercial use, it stands as a critical component in maintaining operational integrity in electric systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Germany, Spain, Mexico, United States
Physical Attributes
- Color
- Light gray
Complementary Attributes
- Maximum Switching Capacity
- 2 A 120...250 V AC inductive 0.6, 10 A 250 V AC resistive15 A 120 V AC resistive30 W DC
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Hysteresis
- 7 K +/- 0.4K, 7 %
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 0627
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Contact Resistance
- 10 mOhm
- Electrical Connection
- 4 terminals 2.5 mm²
- Information Displayed
- temperature in °F
- Mounting Mode
- clipped
- Product Name
- ClimaSys CC
- Range
- ClimaSys
- Sensor Type
- bimetal
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- external: 68 mm
- Certificate Agency
- UL
- Package Weight(Lbs)
- 64.000 g
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Locationon mounting plate, 35 mm DIN rail, cross rails, Spacial upright
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And CompositionNC
Flame Retardanceself-extinguishing conforming to UL94 (material V0)
MaterialPC
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typesimple thermostat
ReturnabilityYes
Service Life In Cycles100000 cycles
Temperature Setting Range0-60 °C
Pep CodeENVPEP2103012EN
Width Nominalexternal: 33 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Customs Code9032100060
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2103012EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-20-80 °C, -20-80 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Silicon FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2103012EN
General Attributes
- Product Or Component Type
- simple thermostat
ETIM
- ETIM 8
- EC004587
ETIM 9EC004587
Output Attributes
- Number Of Outputs
- 1 heating function
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 240 V
