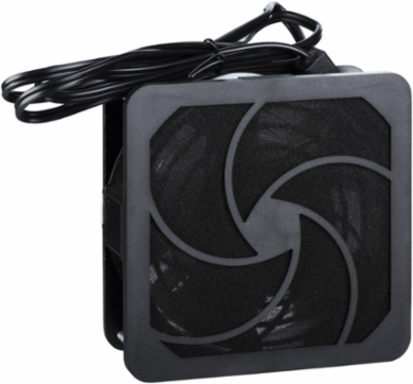

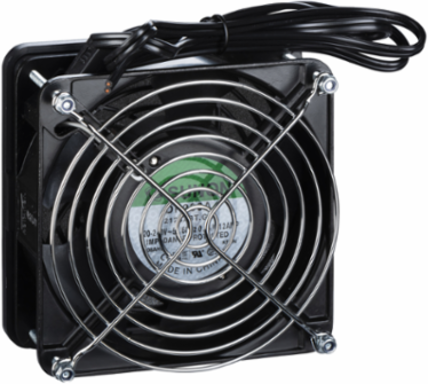

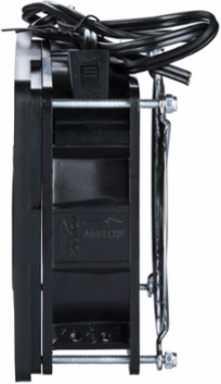

Schneider Electric NSYCVF65M230PF ClimaSys CV Forced Ventilator 65 m³/h, 230V, IP20, ABS Grille
- MPN: NSYCVF65M230PF
- PPN: SCH-NSYCVF65M230PF
CAD
$184.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Climasys Forced ventilator with outlet grille plastic and filter. 230 V 50/60 Hz input voltage. Free flow rate w/o filter/grille is 170 m3/h. Free flow rate w/ std. filter is 65 m3/h at 50 Hz. ABS for outlet grille, Polyurethane foam for filter. Black color. IP20. Cut-out dimensions 108 mm.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage
- 230 V 50/60 Hz
- Type Of Ventilation Filter
- standard
- Product Name
- ClimaSys CV
Air Flowfree flow rate without filter or grille: 170 m3/h || free flow rate with standard filter: 65 m3/h at 50 Hz
Product Or Component Typefan
RangeClimaSys
Complementary
- Cut-Out Dimensions
- Ø 108 mm
- Height
- external 124 mm
- Ip Degree Of Protection
- IP20
- Device Composition
- 1 axial motor || 2 protective grille on the front and rear surfaces || 1 filter front of axial motor || 1 outlet grille front
Widthexternal 124 mm
Materialoutlet grille ABS (acrylonitrile butadiene-styrene) || filter polyurethane foam
Colouroutlet grille black || filter black
Depthexternal 55 mm
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110717EN
- Eu Rohs Directive
- Compliant with Exemptions
Circularity ProfileENVEOLI1107017EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
