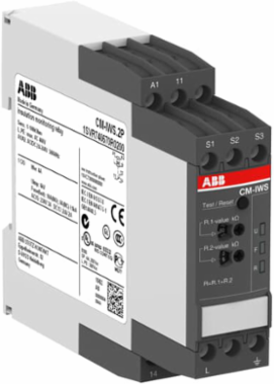

ABB 1SVR740670R0200 Insulation Monitoring Relay 1 c/o, 1-100 k , 24-240 V AC/DC, IP50
- MPN: 1SVR740670R0200
- UPC: 804325584548
- PPN: ABB-1SVR740670R0200
- UNSPSC: 39122331
CAD
$539.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CM-IWS.2P serves to monitor insulation resistance in accordance with IEC 61557-8 in unearthed IT AC systems with a voltage up to 400 V AC. The CM-IWS.2 can be configured to the requirements of the applications and therefore used multi-functional.
Specifications
Dimensions
| Product Net Width | 22.5 mm |
|---|---|
| Product Net Depth / Length | 103.7 mm |
| Product Net Height | 85.6 mm |
|---|---|
| Product Net Weight | 0.13 kg |
Technical
| Function | Unearthed AC systemsUp to 400 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Output | 1 c/o (SPDT) contact |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Minimum Switching Capacity | 24 V10 mA |
| Rated Insulation Voltage (Ui) | Measuring Circuit / Output Circuit 400 VSupply Circuit / Measuring Circuit 400 VSupply Circuit / Output Circuit 300 V |
| Overvoltage Category | III |
| Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A |
| Electrical Durability | AC-12 100000 cycle |
| Connecting Capacity | Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 2x 0.5 ... 1.5 mm² |
| Recommended Screw Driver | 0.8 x 4 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Measuring Range | 1 ... 100 kΩ |
|---|---|
| Rated Frequency (f) | Measuring Circuit DC HzMeasuring Circuit 15 ... 400 HzSupply Circuit 50/60 Hz |
| Terminal Type | Screwless Terminals |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Rated Impulse Withstand Voltage (Uimp) | Measuring Circuit / Output Circuit 6 kVSupply Circuit / Measuring Circuit 6 kVSupply Circuit / Output Circuit 6 kV |
| Degree of Protection | Housing IP50Terminals IP20 |
| Pollution Degree | 3 |
| System Leakage Capacitance (CE) | 10 µF |
| Mechanical Durability | 30000000 cycle |
| Wire Stripping Length | 8 mm |
| Mounting Position | 1 ... 6 |
| Standards | CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61326-2-4IEC/EN 61557-1IEC/EN 61557-8UL 508 |
Classifications
| Object Classification Code | B |
|---|---|
| eClass | V11.0 : 27371807 |
| E-Number (Sweden) | 3860660 |
| ETIM 9 | EC001444 - Insulation and earth fault monitoring relay |
|---|---|
| E-Number (Finland) | 2712261 |
Environmental
| Ambient Air Temperature | Operation -25 ... +60 °CStorage -40 ... +85 °C |
|---|---|
| RoHS Status | Following EU Directive 2011/65/EU |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
|---|
Circular Value
| End of Life Instructions | 1SAC200290H0001 |
|---|
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
|---|---|
| Connecting Capacity UL/CSA | Flexible 2x 18-16 AWGRigid 2x 20-16 AWG |
| Flammability According to UL94 | V-0 |
| Contact Rating UL/CSA | B300 |
|---|---|
| Pilot Duty UL/CSA | B300 |
Ordering
| Minimum Order Quantity | 1 piece |
|---|
| Customs Tariff Number | 85364900 |
|---|
