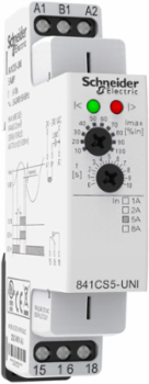

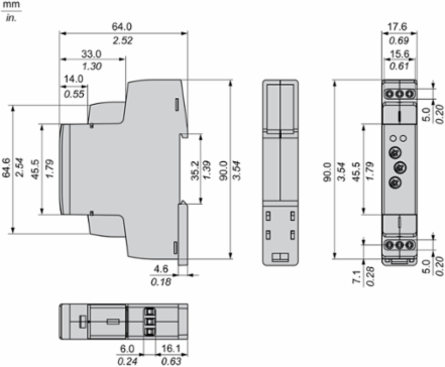

Schneider Electric 841CS5-UNI Current sensor relay, SE Relays, SPDT, 15A, 24 to 240 VAC, 1 time scale, 500 mA to 5 A, DIN mounting
- MPN: 841CS5-UNI
- PPN: SCH-841CS5-UNI
CAD
$164.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 841 series current sensor, solid state circuitry device is used for precise sensing and monitoring the current of one circuit in 500mA to 5A range and switching to another circuit in case of an overcurrent condition. Universal nominal input voltage range 24VAC to 240VAC with ability to manage time settings with adjustment knob from 0.1s to 10s makes 841 series relay suitable for using in wide branches. Relay has SPDT silver alloy contacts, rated 15A. Three-state indication LEDs indicates normal state by green LED and two types of faulted states by blinking red LED as timing state and steady on red LED as energized relay. Direct mount on a 35mm DIN rail, narrow width 17.5mm makes this relay ideal for tight spaces. Finger protections is made according to IEC 60529 IP rating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, United States
Depth64 mm
Complementary Attributes
- Maximum Horse Power Rating
- 0.5 hp 120 V AC1 hp 240 V AC
- Minimum Switching Current
- 100 mA 5 V
Maximum Switching Voltage250 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Signalling
- 1 LED red, 1 LED green
- Certificate Agency
- UL, CE, WEEE, RoHS
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Awg Gauge
- 14 AWG
- Control Type
- with adjustment knob front
- Electrical Durability
- 30000 cycles
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Power Consumption In Va
- 1.5 VA 24...240 V
- Product Or Component Type
- relay
- Repeat Accuracy
- +/- 1 %+/- 1 %
- Sensor Type
- current sensor
- Switch Function
- SPDT
- Time Delay Range
- 0...10 s
- Tripping Threshold
- 0.5...5 A
- Width Nominal
- 17.6 mm
- [Us] Rated Supply Voltage
- 24...240 V AC 50...60 Hz
- Package Weight(Lbs)
- 60.0 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Temperature Drift< 0.1 %/°C, < 0.1 %/°C
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts MaterialAgNi
Dielectric Strength4000 V between input and output
Mechanical Durability15000000 cycles
Overvoltage CategoryIII conforming to IEC 60664-1
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLegacy
ReturnabilityYes
Sustainable PackagingYes
Tightening Torque0.8-0.8 N.m
Time Delay Typeadjustable
Height Nominal90 mm
[Ie] Rated Operational Current15 A at 240 V AC-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490080
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-55 °C, -20-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Ambient Air Temperature For Storage-30-70 °C, -30-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ip Degree Of ProtectionIP20 IEC 60529 terminals)IP40 IEC 60529 front panel)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- relay
Range Of ProductLegacy
Output Attributes
- Nominal Output Current
- 15 A
