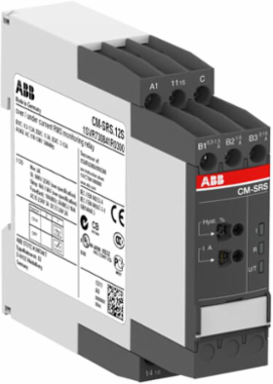

ABB 1SVR740841R1200 Current Monitoring Relay 220-240V AC, 1 c/o Contact, 3-30 mA Range
- MPN: 1SVR740841R1200
- UPC: 804325584838
- PPN: ABB-1SVR740841R1200
- UNSPSC: 39122332
CAD
$391.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CM-SRS.11P is a single-functional current monitoring relay from the CM single-phase monitors range. This monitoring relay operates with a rated control supply voltage of 220 - 240 V AC and has a 1 c/o (SPDT) output contact rated at 250 V / 4 A. It provides a RMS measuring principle for DC and AC currents with 3 measuring ranges: 3-30 mA, 10-100 mA and 0.1-1 A and works according to the open-circuit principle. The CM-SRS.11P is configurable for over- or undercurrent monitoring, the hysteresis is adjustable within a range of 3 to 30 % of the threshold value. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
Dimensions
- Product Net Width
- 22.5 mm
- Product Net Depth / Length
- 103.7 mm
Product Net Height85.6 mm
Product Net Weight0.153 kg
Technical
- Function
- Over- or undercurrent monitoring
- Rated Control Supply Voltage (Us)
- 220 ... 240 V AC
- Terminal Type
- Screwless Terminals
- Rated Operational Current AC-15 (Ie)
- (230 V) 3 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 2 A
- Rated Impulse Withstand Voltage (Uimp)
- Measuring Circuit / Output Circuit 6 kVOutput Circuit 1 / Output Circuit 2 4 kVSupply Circuit / Measuring Circuit 6 kVSupply Circuit / Output Circuit 4 kV
- Degree of Protection
- Housing IP50Terminals IP20
- Pollution Degree
- 3
- Electrical Durability
- AC-12 100000 cycle
- Connecting Capacity
- Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 2x 0.5 ... 1.5 mm²
- Mounting Position
- 1 ... 6
- Standards
- CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 60255-27IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508
Measuring Range3 ... 30 mA10 ... 100 mA0.1 ... 1 A
Output1 c/o (SPDT) contact
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Minimum Switching Capacity24 V10 mA
Rated Insulation Voltage (Ui)Measuring Circuit / Output Circuit 600 VOutput Circuit 1 / Output Circuit 2 250 VSupply Circuit / Measuring Circuit 600 VSupply Circuit / Output Circuit 250 V
Overvoltage CategoryIII
Short-Circuit Protective DevicesOutput Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
Mechanical Durability30000000 cycle
Wire Stripping Length8 mm
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Classifications
- Object Classification Code
- B
- eClass
- V11.0 : 27371802
- E-Number (Sweden)
- 3860653
ETIM 9EC001440 - Current monitoring relay
E-Number (Finland)2712302
Environmental
- Ambient Air Temperature
- Operation -20 ... +60 °CStorage -40 ... +85 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Circular Value
- End of Life Instructions
- 1SAC200290H0001
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Output Circuit 300 V AC
- Connecting Capacity UL/CSA
- Flexible 2x 18-16 AWGRigid 2x 20-16 AWG
- Flammability According to UL94
- V-0
Contact Rating UL/CSAB300
Pilot Duty UL/CSAB300
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85364900
