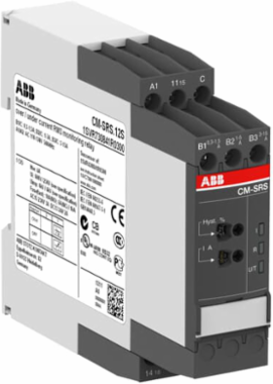

ABB 1SVR740840R0200 Current Monitoring Relay 1 c/o, 24-240V AC/DC, 3-30 mA Measuring Range, IP50

MPN: 1SVR740840R0200
UPC: 804325584784
PPN: ABB-1SVR740840R0200
UNSPSC: 39122332

$465.97

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The CM-SRS.11P is a single-functional current monitoring relay from the CM single-phase monitors range. This monitoring relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 1 c/o (SPDT) output contact rated at 250 V / 4 A. It provides a RMS measuring principle for DC and AC currents with 3 measuring ranges: 3-30 mA, 10-100 mA and 0.1-1 A and works according to the open-circuit principle. The CM-SRS.11P is configurable for over- or undercurrent monitoring, the hysteresis is adjustable within a range of 3 to 30 % of the threshold value. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.

Specifications

Dimensions

Product Net Width	22.5 mm
Product Net Depth / Length	103.7 mm

Product Net Height	85.6 mm
Product Net Weight	0.137 kg

Technical

Function	Over- or undercurrent monitoring
Rated Control Supply Voltage (Us)	24 ... 240 V AC/DC
Terminal Type	Screwless Terminals
Rated Operational Current AC-15 (Ie)	(230 V) 3 A
Rated Operational Current DC-13 (Ie)	(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp)	Measuring Circuit / Output Circuit 6 kVOutput Circuit 1 / Output Circuit 2 4 kVSupply Circuit / Measuring Circuit 6 kVSupply Circuit / Output Circuit 4 kV
Degree of Protection	Housing IP50Terminals IP20
Pollution Degree	3
Electrical Durability	AC-12 100000 cycle
Connecting Capacity	Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 2x 0.5 ... 1.5 mm²
Mounting Position	1 ... 6
Standards	CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 60255-27IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508

Measuring Range	3 ... 30 mA10 ... 100 mA0.1 ... 1 A
Output	1 c/o (SPDT) contact
Rated Operational Current AC-12 (Ie)	(230 V) 4 A
Rated Operational Current DC-12 (Ie)	(24 V) 4 A
Minimum Switching Capacity	24 V10 mA
Rated Insulation Voltage (Ui)	Measuring Circuit / Output Circuit 600 VOutput Circuit 1 / Output Circuit 2 250 VSupply Circuit / Measuring Circuit 600 VSupply Circuit / Output Circuit 250 V
Overvoltage Category	III
Short-Circuit Protective Devices	Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
Mechanical Durability	30000000 cycle
Wire Stripping Length	8 mm
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Classifications

Object Classification Code	B
eClass	V11.0 : 27371802
E-Number (Sweden)	3860648

ETIM 9	EC001440 - Current monitoring relay
E-Number (Finland)	2712300

Environmental

Ambient Air Temperature	Operation -20 ... +60 °CStorage -40 ... +85 °C
RoHS Status	Following EU Directive 2011/65/EU

Maximum Operating Altitude Permissible	Without Derating 2000 m

Circular Value

End of Life Instructions	1SAC200290H0001

Technical UL/CSA

Maximum Operating Voltage UL/CSA	Output Circuit 300 V AC
Connecting Capacity UL/CSA	Flexible 2x 18-16 AWGRigid 2x 20-16 AWG
Flammability According to UL94	V-0
