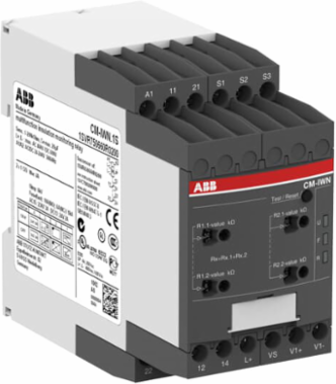

ABB 1SVR760660R0200 Insulation Monitoring Relay 2c/o, 1-200 k , 24-240V AC/DC
- MPN: 1SVR760660R0200
- UPC: 804325585002
- PPN: ABB-1SVR760660R0200
- UNSPSC: 39122331
CAD
$1526.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CM-IWN.1P serves to monitor insulation resistance in accordance with IEC 61557-8 in unearthed IT AC systems, IT AC systems with galvanically connected DC circuits, or unearthed IT DC systems with a voltage up to 400 V AC and 600 V DC. The measuring range can be extended up to 690 V AC and 1000 V DC by using the coupling unit CM-IVN. It can be configured to the requirements of the applications and therefore used multi-functional.
Specifications
Dimensions
- Product Net Width
- 45 mm
- Product Net Depth / Length
- 104.8 mm
Product Net Height85.6 mm
Product Net Weight0.217 kg
Technical
- Function
- Unearthed AC systemsUnearthed DC systemsUnearthed mixed AC / DC systemsUp to 400 V ACUp to 600 V DC
- Rated Control Supply Voltage (Us)
- 24 ... 240 V AC/DC
- Output
- 2 x 1 c/o or 1 x 2 c/o contacts, configurable
- Rated Operational Current AC-12 (Ie)
- (230 V) 4 A
- Rated Operational Current DC-12 (Ie)
- (24 V) 4 A
- Minimum Switching Capacity
- 24 V10 mA
- Rated Insulation Voltage (Ui)
- Measuring Circuit / Output Circuit 600 VOutput Circuit 1 / Output Circuit 2 300 VSupply Circuit / Measuring Circuit 600 VSupply Circuit / Output Circuit 300 V
- Overvoltage Category
- III
- Short-Circuit Protective Devices
- Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
- Electrical Durability
- AC-12 100000 cycle
- Connecting Capacity
- Flexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 2x 0.5 ... 1.5 mm²
- Recommended Screw Driver
- 0.8 x 4
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Measuring Range1 ... 200 kΩ
Rated Frequency (f)Measuring Circuit 15 ... 400 Hz
Terminal TypeScrewless Terminals
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp)Measuring Circuit / Output Circuit 6 kVOutput Circuit 1 / Output Circuit 2 4 kVSupply Circuit / Measuring Circuit 6 kVSupply Circuit / Output Circuit 6 kV
Degree of ProtectionHousing IP50Terminals IP20
Pollution Degree3
System Leakage Capacitance (CE)20 µF
Mechanical Durability30000000 cycle
Wire Stripping Length8 mm
Mounting Position1 ... 6
StandardsCAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61326-2-4IEC/EN 61557-1IEC/EN 61557-8UL 508
Classifications
- Object Classification Code
- B
- eClass
- V11.0 : 27371807
- E-Number (Sweden)
- 3860661
ETIM 9EC001444 - Insulation and earth fault monitoring relay
E-Number (Finland)2712255
Environmental
- Ambient Air Temperature
- Operation -25 ... +60 °CStorage -40 ... +85 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Circular Value
- End of Life Instructions
- 1SAC200290H0001
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Output Circuit 300 V AC
- Connecting Capacity UL/CSA
- Flexible 2x 18-16 AWGRigid 2x 20-16 AWG
- Flammability According to UL94
- V-0
Contact Rating UL/CSAB300
Pilot Duty UL/CSAB300
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85364900
