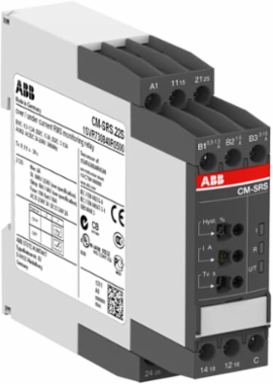

ABB 1SVR740840R0400 CM-SRS.21P Current Monitoring Relay 2 c/o, 24-240V AC/DC, 3-30 mA
- MPN: 1SVR740840R0400
- UPC: 804325584791
- PPN: ABB-1SVR740840R0400
- UNSPSC: 39122332
CAD
$506.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CM-SRS.21P is a single-functional current monitoring relay from the CM single-phase monitors range. This monitoring relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It provides a RMS measuring principle for DC and AC currents with 3 measuring ranges: 3-30 mA, 10-100 mA and 0.1-1 A and works according to the open-circuit principle. The CM-SRS.21P is configurable for over- or undercurrent monitoring. The hysteresis is adjustable within a range of 3 to 30 % of the threshold value and the tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
Dimensions
- Product Net Width
- 22.5 mm
- Product Net Depth / Length
- 103.7 mm
Product Net Height85.6 mm
Product Net Weight0.141 kg
Technical
- Function
- Over- or undercurrent monitoring
- Time Range
- 0 s or 0.1 ... 30 s tripping delay (ON)
- Output
- 2 c/o (SPDT) contacts
- Rated Operational Current AC-12 (Ie)
- (230 V) 4 A
- Rated Operational Current DC-12 (Ie)
- (24 V) 4 A
- Minimum Switching Capacity
- 24 V10 mA
- Rated Insulation Voltage (Ui)
- Measuring Circuit / Output Circuit 600 VOutput Circuit 1 / Output Circuit 2 250 VSupply Circuit / Measuring Circuit 600 VSupply Circuit / Output Circuit 250 V
- Overvoltage Category
- III
- Short-Circuit Protective Devices
- Output Circuit NC - F Type Fuses 10 AOutput Circuit NO - F Type Fuses 10 A
- Mechanical Durability
- 30000000 cycle
- Wire Stripping Length
- 8 mm
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Measuring Range3 ... 30 mA10 ... 100 mA0.1 ... 1 A
Rated Control Supply Voltage (Us)24 ... 240 V AC/DC
Terminal TypeScrewless Terminals
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp)Measuring Circuit / Output Circuit 6 kVOutput Circuit 1 / Output Circuit 2 4 kVSupply Circuit / Measuring Circuit 6 kVSupply Circuit / Output Circuit 4 kV
Degree of ProtectionHousing IP50Terminals IP20
Pollution Degree3
Electrical DurabilityAC-12 100000 cycle
Connecting CapacityFlexible with Ferrule 2x 0.5 ... 1.5 mm²Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 2x 0.5 ... 1.5 mm²
Mounting Position1 ... 6
StandardsCAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 60255-27IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508
Classifications
- Object Classification Code
- B
- eClass
- V11.0 : 27371802
- E-Number (Sweden)
- 3860649
ETIM 9EC001440 - Current monitoring relay
E-Number (Finland)2712309
Environmental
- Ambient Air Temperature
- Operation -20 ... +60 °CStorage -40 ... +85 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Circular Value
- End of Life Instructions
- 1SAC200290H0001
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Output Circuit 300 V AC
- Connecting Capacity UL/CSA
- Flexible 2x 18-16 AWGRigid 2x 20-16 AWG
- Flammability According to UL94
- V-0
Contact Rating UL/CSAB300
Pilot Duty UL/CSAB300
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85364900
