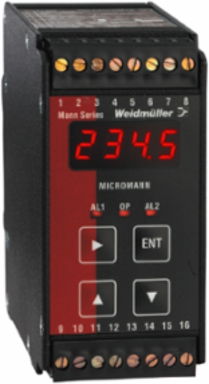

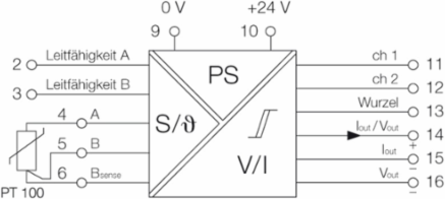

Weidmuller 7940010232 CNDAR
- MPN: 7940010232
- PPN: WDM-7940010232
CAD
$1955.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Process monitoring, 0...200 µS (resolution 0.1 µS)0...1000 / 5000 µS (resolution 1 µs)0...20 mS (0.01 mS resolution)0...200 °C (0.1 °C resolution)
Documentation & Downloads
Specifications
General Data
- Accuracy
- ± 0.05 % of final value
- Linearity
- ± 0.05 % of signal range
- Power consumption
- 6 W @ 24 V DC
- Repeat accuracy
- ± 0.05 % of signal range
- Step response time
- 320 ms (10...90 %),adjustable (250 ms...32 s)
- Voltage supply
- 12...50 V DC
Input/OutputVoltage/current output
Long-term drift0.1 % / 10.000 h
RailTS 35, TS 32
Sampling rate5x pro s
Temperature coefficient≤ 0.02 % / °C
Approvals
- Approvals
- CE, CULUS
- UL File Number Search
- E256486
ROHSConform
Display
- Type
- 4-character display
- Display value
- µS, mS, µS/cm, mS/cm or °C
Display range-999...9999
Resolution (display)Refer to input signal
Dimensions And Weights
- Width
- 46 mm
- Height
- 97 mm
- Depth
- 120 mm
- Weight
- 500 g
Width (inches)1.811 inch
Height (inches)3.819 inch
Depth (inches)4.724 inch
Net weight500 g
Connection Data
- Type of connection
- Screw connection
- Clamping range, min.
- 0.5 mm²
Clamping range, rated connection1.5 mm²
Clamping range, max.2.5 mm²
Alarm Output
- Type
- Alarm output with 2 NO contacts and suppressor circuit
Switching current1 A @ 240 V AC / 30 V DC
Input
- Type
- Conductivitiy, PT100 RTD
- Input signal
- 0...200 µS (resolution 0.1 µS)0...1000 / 5000 µS (resolution 1 µs)0...20 mS (0.01 mS resolution)0...200 °C (0.1 °C resolution)
Sensor supply≤ 6 Vss @ 400 Hz
Cable-length compensation< 2 % (up to 30 Ω)
Output (Analogue)
- Load resistance current
- ≤ 900 Ω
- Output current
- 0...22 mA
- Transmit function
- direct or inverted
Load resistance voltage≥ 1 kΩ
Output voltage0...11 V
Type (analogue output)Voltage and current output (configurable)
Classifications
- ETIM 6.0
- EC000677
- eClass 9.0
- 27-14-31-10
- eClass 10.0
- 27-14-31-10
ETIM 7.0EC000677
eClass 9.127-21-03-01
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- DIN EN 61326
- Insulation voltage
- 2 kV input / output / power supply
Impulse withstand voltage4 kV (1.2/50 µs)
Rated voltage300 Veff
Temperatures
- Humidity
- 0...90 % (no condensation)
- Operating temperature, min.
- 0 °C
- Storage temperature, min.
- -25 °C
- Storage temperature
- -25 °C...70 °C
Operating temperature, max.60 °C
Storage temperature, max.70 °C
Operating temperature0 °C...60 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E256486
