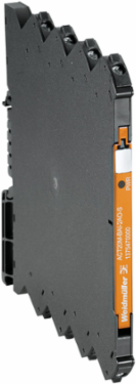

Weidmuller 1375480000 Configurable Temperature Converter, Thermocouple Input, 4.43 Inch Height
- MPN: 1375480000
- PPN: WDM-1375480000
CAD
$323.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Temperature converter, Thermocouple, Input : Temperature, Output : I / U
Documentation & Downloads
Specifications
General Data
- Accuracy
- absolute accuracy: < ±0.05 % of the measurement range, Basic accuracy: < ±0.5°
- Galvanic isolation
- 3-way isolator
- Power consumption, typ.
- 0.49 W
- Step response time
- ≤ 30 ms, < 300 ms, Configurable
- Voltage supply
- 24 V DC ± 30 %

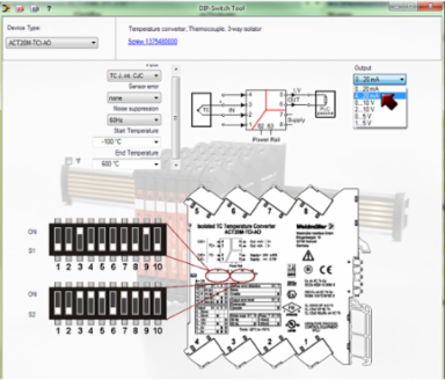

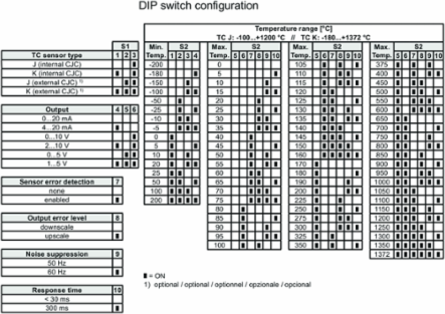

ConfigurationDIP switch
Power consumption, max.0.7 W
RailTS 35
Temperature coefficient0,1 °C ⁄ °C, or, ≤0,01% des Messbereichs⁄°C
Probability Of Failure
- MTBF
- 147 Years
Approvals
- Approvals
- CULUS, DETNORVER, DNV GL, EAC, FMEX, IECEXKEM, KEMAATEX
- UL File Number Search
- E337701
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 112.5 mm
- Depth
- 114.3 mm
- Net weight
- 84 g
Width (inches)0.24 inch
Height (inches)4.429 inch
Depth (inches)4.5 inch
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 30
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Rated Data Ul
- UL certificate
- E337701.pdf

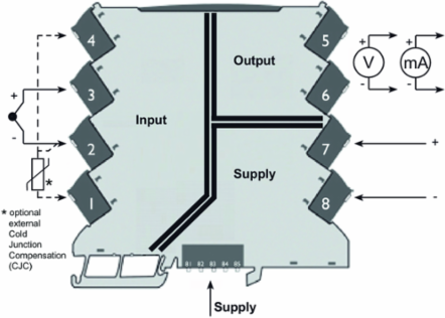

Input
- Number of inputs
- 1
- Input measurement range
- Thermocouple type J -100…+1200°C, Thermocouple type K -200…+1370°C
SensorThermocouple (type J, K)
Temperature input rangeConfigurable, min. measurement range 50°C (TC)
Classifications
- ETIM 6.0
- EC002919
- eClass 9.0
- 27-21-01-29
- eClass 10.0
- 27-21-01-29
ETIM 7.0EC002919
eClass 9.127-21-01-29
Output
- Number of outputs
- 1
- Output current
- configurable, 0...20 mA, 4...20 mA
- cold junction compensation
- configurable internal or external cold-junction compensation (thermocouple)
- load impedance current
- ≤ 600 Ω
Output voltage, noteconfigurable, 0(2)...10 V, 0(1)...5 V
Wire break detectionConfigurable, 3.5 mA ⁄ 23 mA ⁄ none
load impedance voltage≥ 10 kΩ
Product Information
- Product information

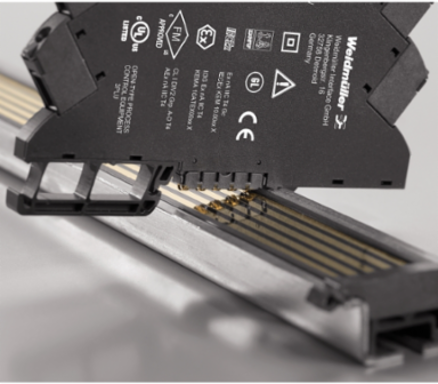

- The ACT20M-TCI-AO-S configurable temperature transducer isolates and converts analogue signals. An analogue thermocouple input signal (Type J, K) is linearly converted into an analogue output signal and is galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation) and this is done with direct wiring or over the Weidmüller rail bus.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Marking
- II 3 G Ex nA IIC T4 Gc
Insulation Coordination
- EMC standards
- IEC 61326-1, NE 21
- Insulation voltage
- 2.5 kVeff /1 min.
- Rated voltage
- 300 Veff
Galvanic isolation3-way isolator
Pollution severity2
Surge voltage categoryII
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Storage temperature, max.85 °C
Ambient temperature-25 °C...+70 °C
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- KEMA10ATEX0183X
- Certificate no. (cULus)
- E337701
Certificate No. (IECEX)IECEXKEM10.0090X
