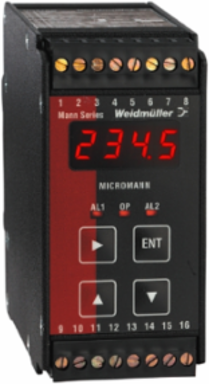

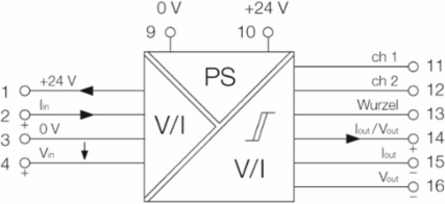

Weidmuller 7940012190 UTCAR
- MPN: 7940012190
- PPN: WDM-7940012190
CAD
$1225.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Process monitoring, Thermocouple (type J,K,T,E,B,S,R) or mV signals
Documentation & Downloads
Specifications
General Data
| Accuracy | < 0,1 % |
|---|---|
| Input/Output | Temperature converter |
| Long-term drift | 0.1 % / 10.000 h |
| Rail | TS 35, TS 32 |
| Sampling rate | 5x pro s |
| Temperature coefficient | ≤ 0.02 % / °C |
| Cold-junction compensation error | ≤ 0.02 / C° ambient temperature |
|---|---|
| Linearity | ± 0.1 % typ. |
| Power consumption | 6 W @ 24 V DC |
| Repeat accuracy | ± 0.05 % of signal range |
| Step response time | 320 ms (10...90 %), adjustable to 250 ms...32 s |
| Voltage supply | 12...50 V DC |
Approvals
| Approvals | CE, CULUS |
|---|---|
| UL File Number Search | E256486 |
| ROHS | Conform |
|---|
Display
| Type | 4-character display |
|---|---|
| Display value | °C / °F or V |
| Display range | Depends on input type |
|---|---|
| Resolution (display) | 1 °C / °F or 0.01 mV |
Dimensions And Weights
| Width | 46 mm |
|---|---|
| Height | 97 mm |
| Depth | 120 mm |
| Weight | 504 g |
| Width (inches) | 1.811 inch |
|---|---|
| Height (inches) | 3.819 inch |
| Depth (inches) | 4.724 inch |
| Net weight | 504 g |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Clamping range, rated connection | 1.5 mm² |
|---|---|
| Clamping range, max. | 2.5 mm² |
Alarm Output
| Type | Alarm output with 2 NO contacts and suppressor circuit |
|---|
| Switching current | 1 A @ 240 V AC / 30 V DC |
|---|
Input
| Type | Thermocouples (type J,K,T,E,B,S,R) or mV signals |
|---|---|
| Input signal | Thermocouple (type J,K,T,E,B,S,R) or mV signals |
| Sensor | J 870°C(1598°F)/-50°C(-58°F), K 1372°C(2502°F)/-50°C(-58°F), N 1300°C(2375°F)/-50°C(-58°F), T 400°C(752°F)/-50°C( |
|---|---|
| Input resistance | ≤ 1 kΩ |
Output (Analogue)
| Load resistance current | ≤ 900 Ω |
|---|---|
| Output current | 0...22 mA |
| Transmit function | direct or inverted |
| Load resistance voltage | ≥ 1 kΩ |
|---|---|
| Output voltage | 0...11 V |
| Type (analogue output) | Voltage and current output (configurable) |
Classifications
| ETIM 6.0 | EC000677 |
|---|---|
| eClass 9.0 | 27-14-31-10 |
| eClass 10.0 | 27-14-31-10 |
| ETIM 7.0 | EC000677 |
|---|---|
| eClass 9.1 | 27-21-03-01 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | DIN EN 61326 |
|---|---|
| Insulation voltage | 2 kV input / output / power supply |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
|---|---|
| Rated voltage | 300 Veff |
Temperatures
| Humidity | 0...90 % (no condensation) |
|---|---|
| Operating temperature, min. | 0 °C |
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...70 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | 0 °C...60 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E256486 |
|---|
