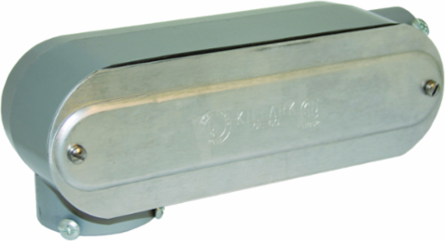

Killark COLR-4CG Aluminum Conduit Body 1-1/4 Inch, 32 cu in Volume, Powder Epoxy Finish
Killark COLR-4CG Aluminum Conduit Body 1-1/4 Inch, 32 cu in Volume, Powder Epoxy Finish
- MPN: COLR-4CG
- UPC: 783936067926
- PPN: HBL-COLR-4CG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$184.95/ EA
Description
Combo LR Aluminum Conduit Body, Cover,Gasket 1 1/4
Features
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 32 cu. in.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 4.000 in
- Color
- Gray
- Height
- 3 in
- Length
- 9 in
- Type
- Conduit Body With Cover & Gasket
- Cover Type
- Stamped
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- COMBO LR CONDUIT BODY AL, CVR,GASK 1 1/4
- Harmonization Code
- 7609000000
- Lead Time
- 49 wk
- Order Multiple
- 2 EA
- Sub Class Code
- D30D231
- Hub Pattern
- LR
- Series
- CO Series
- BOX SIZE
- 3.000x9.000x4.000 (in)
- Carton - Number of Sub Packs
- 2
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936067926
- Master Pack Description
- Each
Dimensions9 in x 4 in x 3 in
ApplicationTo provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit.
FinishPowder Epoxy Paint
Hub Size1-1/4"
Special FeaturesCombination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 32 cu. in.
Width4 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
Gross Weight with Packaging1.87
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack14.880 lb.
Carton - Pack DescriptionCarton
Carton - Total Units2 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
