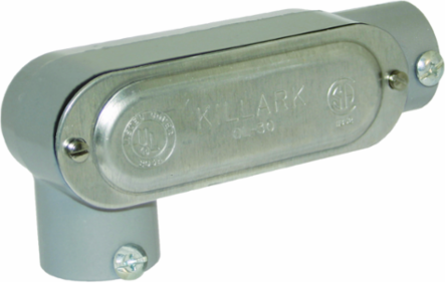

Killark COLR-2CG Aluminum Combo LR Conduit Body 3/4 Inch with Cover & Gasket, 7 cu. in. Volume
Killark COLR-2CG Aluminum Combo LR Conduit Body 3/4 Inch with Cover & Gasket, 7 cu. in. Volume
- MPN: COLR-2CG
- UPC: 783936067902
- PPN: HBL-COLR-2CG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$104.12/ EA
Description
Combo LR Aluminum Conduit Body, Cover,Gasket 3/4"
Features
- Combination bodies have threaded and set screw hubs
- Prepackaged with body, cover, and gasket
- For use with IMC and EMT conduit
- Covers furnished with stainless steel screws
- NPSM threads
- Type 3 rated with Rigid / IMC conduit
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 7 cu. in.
Specifications
Specifications
- Country of Origin
- United States
- Application
- To provide access to conductors for pulling, splicing, maintenance, and for future changes or upgrades. Combination bodies for use with EMT or rigid/IMC conduit.
- Finish
- Powder Epoxy Paint
- Hub Size
- 3/4"
- Special Features
- Combination bodies have threaded and set screw hubs. Pre-packaged with body, cover and gasket. Covers furnished with stainless steel screws. Volume is 7 cu. in.
- Width
- 6 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- Gross Weight with Packaging
- 0.47
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.700 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
Dimensions15.5 in x 6 in x 9 in
ColorGray
Height9 in
Length15.5 in
TypeConduit Body With Cover & Gasket
Cover TypeStamped
ARRA CompliantContact Manufacturer
Description - InvoiceCOMBO LR CONDUIT BODY AL, CVR,GASK 3/4"
Harmonization Code7609000000
Lead Time49 wk
Order Multiple10 EA
Sub Class CodeD30D231
Hub PatternLR
SeriesCO Series
BOX SIZE9.000x15.500x6.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783936067902
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
