Klein Tools 93MCLG Green Mini Cross-Line Laser Level, 50 Foot Range, IP54 Water/Dust Resistance
- MPN: 93MCLG
- UPC: 092644930119
- PPN: KLT-93MCLG
- UNSPSC: 27111802
CAD
$111.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

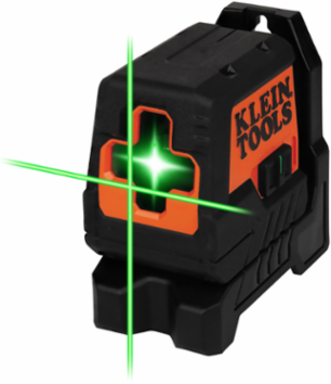

The Klein Tools Mini Cross Laser Level is a high-performance laser leveling and alignment tool for professionals with over 8 hours of runtime with a Class 2 laser ( IEC 60825-1 Ed. 3.) with an output power of less than or equal to 1mW at 508-530 nm. This level provides a reliable pendulum self-leveling system with bright green laser level lines. Equipped with a magnetic mounting bracket and overmold design that protects from water and dust.
Features

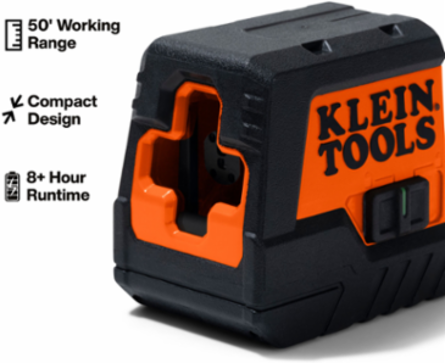

- Self-Leveling Green Laser Level has easy-to-read, horizontal and vertical lines, optimized for indoor lighting conditions with a working range of 50 feet (15.2 m)
- Projects horizontal and vertical lines to address various alignment tasks
- Compact and lightweight design is easy to use in tight areas and to store when not in use

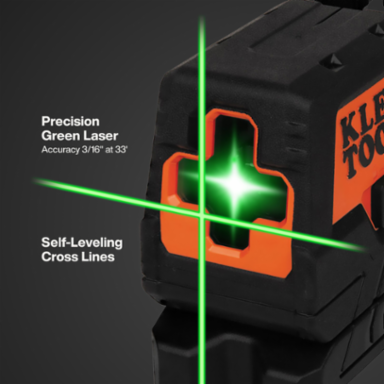

- High precision laser project clean lines with accuracy of 3/16-Inch at 33 feet (10 m); auto out-of-level detection flashes lasers when no longer level

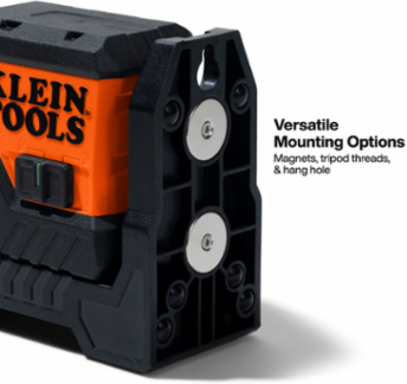

- Magnetic mounting bracket screws into integrated 1/4-Inch-20 tripod mount
- Over 8-Hour runtime provides lasers power to ensure extended all day use
- Durable overmold design that is IP54 rated protects the laser level from water and dust

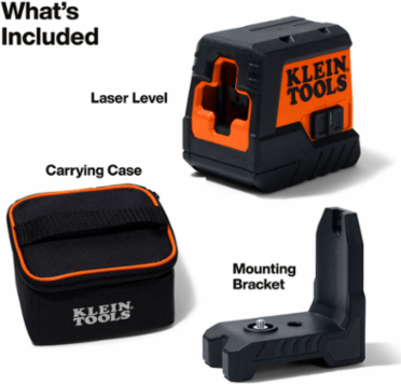

- Magnetic Mounting Bracket with 1/4'' Tripod Mount; Mounting Clamp Attachment; Out-of-Level Detection, Low Battery Indicator
Documentation & Downloads
Specifications
Key Specifications
- Application
- Self-Leveling Laser Alignment Tool
- Receiver
- No
- Indoor Range
- 50' (15.2 m)
- Low Battery Indicator
- Yes
- Drop Protection
- 3.3' (1 m)
- Number of Beams
- 2
- Ingress Protection
- IP54 - Water and Dust Resistant
- Pulse Mode
- No
- Transit Locking Mechanism
- Yes
- Laser Color
- Green
- Accuracy
- +/- 3/16" per 33' (10 m)
- Standard
- Conforms to EN61326-1:2013, EN60825-1:2014
- Included
- 10 oz (283 g)
- Display
- No
- Laser mW
- ≤ 1mW
- Overall Length
- 10.7 cm (4.2 Inch)
- Overall Width
- 3.2 Inch (8.1 cm)
- Width
- 2.2300 in
- Weight
- 0.4600 lbs
MaterialPC + ABS + TPE
Batteries2 x AA
Overall Height4" (10.2 cm) (10.2 cm) (4 Inch)
Battery Life8 hr
Magnet TypeRare Earth - Neodymium
Laser SafetyComplies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019
TypeLaser
Low Battery AlarmYes
Bag or CaseSoft Case
Number of Vials0
Laser Wavelength≤ 1mW @ 508 - 530 nm
Plumb LaserNo
Mounting TypeMagnetic Bracket, Tripod Mount
Out-of-Level IndicatorYes
Laser ClassClass 2
Maximum Distance15.2 m (50 Feet)
Height2.9800 in
Depth3.1900 in
