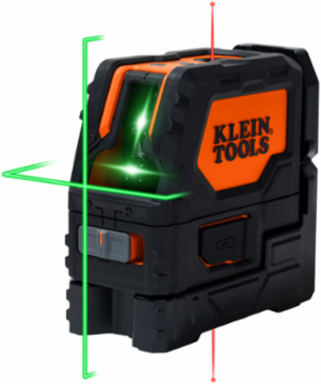

Klein Tools 93LCLGR Rechargeable Green Cross-Line Laser Level, 165-Foot Range, IP54 Rated
- MPN: 93LCLGR
- UPC: 092644930089
- PPN: KLT-93LCLGR
- UNSPSC: 27111802
CAD
$384.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

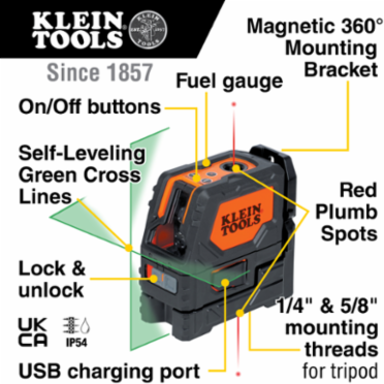

The Klein Tools Green Rechargeable Laser Level is a high-performance Class 2 (<= 1mW @ 510-530 nm) laser leveling and alignment tool for professionals with a rechargeable battery. This level provides a reliable pendulum self-leveling system with clear, bright green laser level lines, and red plumb up/down spots. Equipped with an integrated magnetic mount and an additional ceiling grid clamp , Klein's cross-line laser level enables a multitude of alignment and layout applications.
Features

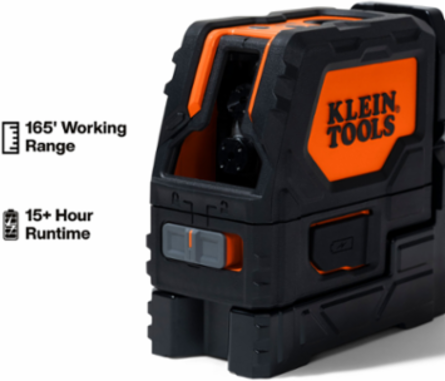

- Rechargeable self-leveling laser level is easy-to-read with high-visibility green horizontal and vertical laser lines and red plumb spot lasers with a working range of 165-Foot (50.3 m)

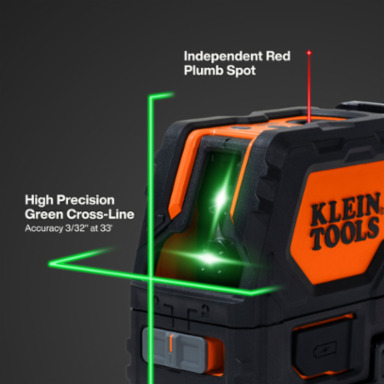

- Projects high precision horizontal and vertical lines and plumb up/down spots independently or together to address various alignment tasks with accuracy up to 3/32-Inch at 33 feet (10.1 m)
- High capacity rechargeable Li-ion battery powers all lasers with more than 15 hours of run time

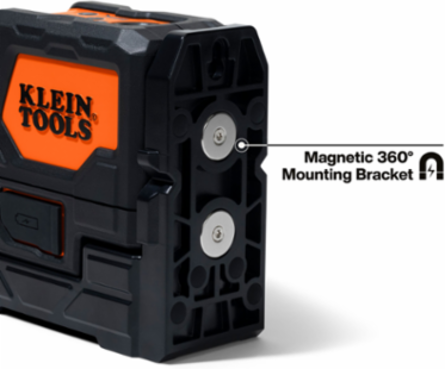

- Integrated magnetic 360-Degree mounting bracket with 1/4-Inch and 5/8-Inch tripod mounting threads facilitates attachment to ferromagnetic objects
- Additional mounting clamp attachment for use on ceiling grid applications
- Rugged body provides IP54 water and dust resistance for job site durability
- Includes protective hard plastic carrying case, USB-A to USB-C charging cable, mounting clamp, and instruction manual
- This product is classified as a Class II laser product according to IEC/EN 60825-1:2014, (Power <=1mW @ 510-530 nm)
- Integrated Magnetic 360° Mounting Bracket with 1/4" and 5/8" Tripod Mounting Threads; Mounting Clamp Attachment; Excessive Tilt Indicator
Documentation & Downloads
Specifications
Key Specifications
- Number of Vials
- 0
- Bag or Case
- Hard Carrying Case
- Number of Beams
- Four; Horizontal, Vertical, Plumb Up, Plumb Down
- Drop Protection
- 3.3' (1 m)
- Standard
- EN61326-1, EN60825-1, 21 CFR 1040.10 and 1040.11
- Application
- Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines, and/or Plumb Spots
- Batteries
- Lithium-Ion
- Indoor Range
- 165' (50.3 m)
- Low Battery Alarm
- Yes
- Plumb Laser
- Yes
- Material
- ABS Housing and Electronic Components
- Type
- Self-Leveling Laser Level
- Out-of-Level Indicator
- No
- Laser Class
- Class 2
- Overall Height
- 13.5 cm (5.3 Inch)
- Overall Width
- 2.6 Inch (6.6 cm)
- Width
- 2.5600 in
- Weight
- 1.9400 lbs
IncludedLaser Level; Hard Carrying Case; Instruction Manual; Mounting Clamp; Charging Cable
Laser Wavelength515-530 nm (Cross-Lines), 630-680 nm (Plum Spots)
Laser ColorCross Line - Green; Plumb - Red
Accuracy±3/32" per 33' (±2 mm per 10 m) Vertical & Horizontal Beams, ±1/8" per 33' (±3 mm per 10 m) Plumb Up Spot, ±5/32" per 33' (±4 mm per 10 m) Plumb Down Spot
Battery LifeMore Than 12 Hr
Ingress ProtectionIP54 - Water and Dust Resistant
Magnet TypePermanent Rare Earth
Pulse ModeNo
Low Battery IndicatorYes
ReceiverNo
Transit Locking MechanismYes
Mounting TypeMagnetic, Tripod, Hang-Hole
Laser mW≤1mW Each Beam
Overall Length13.2 cm (5.2 Inch)
Maximum Distance50.3 m (165 Feet)
Height5.2200 in
Depth5.2900 in
