Harmony XB4 Light Block Assembly 110-120V, 1NO + 1NC, 30 mm Width
Harmony XB4 Light Block Assembly 110-120V, 1NO + 1NC, 30 mm Width
Schneider Electric

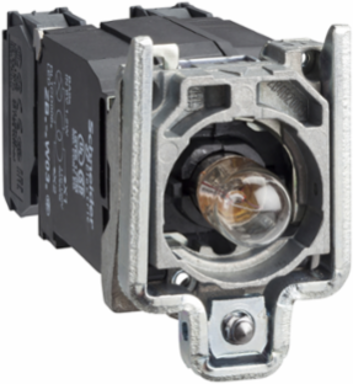

Schneider Electric ZB4BW035 Harmony XB4 Light Block Assembly 110-120V, 1NO + 1NC, 30 mm Width

  • MPN: ZB4BW035
  • PPN: SCH-ZB4BW035
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $139.42

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony XB4, light block with body/fixing collar isoperates with BA9s base Integral LED. It has 1 x NO + 1 x NC contacts and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Czechia, France, United States

    Physical Attributes

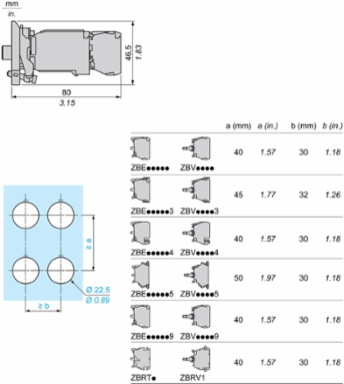

    Cad Overall Height
    47 mm
    Cad Overall Width30 mm

    Important Information Attributes

    Customizable
    0, no
    Electrical Reliability
    λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    Operating Force
    2 N NC changing electrical state, 2.3 N NO changing electrical state
    Shape Of Screw Head
    cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Contacts Composition
    1 NO + 1 NC
    [Ie] Rated Operational Current
    3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Connections - Terminals
    screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    Carbon Footprint Of The Distribution Phase [A4]
    0.0220746199, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0202884211, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    30 kg CO2 eq., 29.9729929357
    Local Publishable Date
    2026-01-12
    Future Imap
    64.21
    Stocking Flag
    N
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1808008EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Average Percentage Of Recycled Metal Content
    21 %
    Bulb Base
    BA 9s
    Contact Operation
    slow-break
    Contacts Type And Composition
    1 NO + 1 NC
    Device Short Name
    ZB4
    Fixing Collar Material
    zamak
    Light Block Supply
    via integral transformer 1.2 VA 6 V
    Operating Torque
    0.05 N.m NO changing electrical state
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    TH
    Returnability
    Yes
    Signalling Type
    steady
    Supply Voltage
    110...120 V
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Vibration Resistance
    5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Pep Code
    ENVPEP1808008_V2-EN
    Pep Verification Date
    2023-08-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Light Sourceincandescent, incandescent
    Operating Travel1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel)
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Certificate AgencyDNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA
    [Us] Rated Supply Voltage110...120 V, 110...120 V AC 50/60 Hz
    Terminals Description Iso N°1(11-12)NC, (11-12)NC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.229905848
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.0385912281
    Local Data StatusPublishable
    Return IndicatorY
    Future Msrp83.13
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content37 %
    Compatibility CodeZB4
    Contacts Materialsilver alloy (Ag/Ni)
    Contacts Usagestandard
    Electrical Shock Protection Classclass I conforming to IEC 60536
    Head Typestandard
    Mechanical Durability5000000 cycles
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Or Component Typecomplete body/contact assembly and light block
    Range Of ProductHarmony XB4
    Sale Per Indivisible Quantity1
    Software Versionv5.9.4
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint31 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)138.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    31.2838530527
    Environmental Disclosure
    ENVPEP1808008_V2-EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2023-08-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level21 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1808008EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP1808008_V2-EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    complete body/contact assembly and light block
    Range Of ProductHarmony XB4

    ETIM

    ETIM 8
    EC000204
    ETIM 9EC000204

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    basic sub-assemblies
