Schneider Electric ZB4BW7A3741 Harmony XB4 Illuminated Double-Headed Push Button, 22mm, IP66, Metal
- MPN: ZB4BW7A3741
- PPN: SCH-ZB4BW7A3741
CAD
$62.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

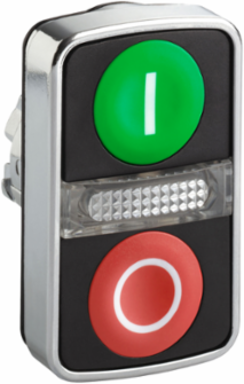

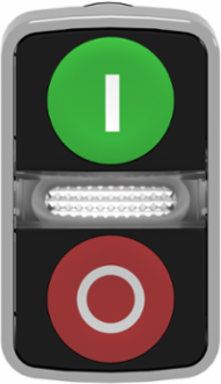

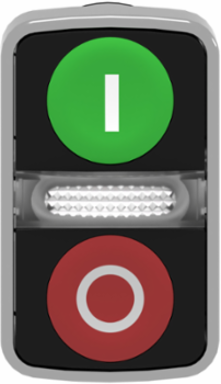

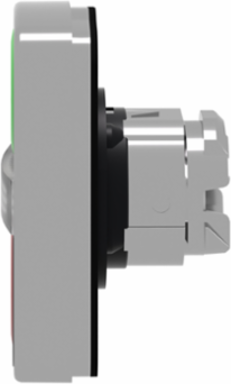

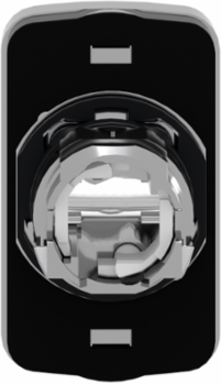

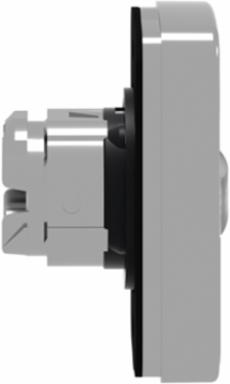

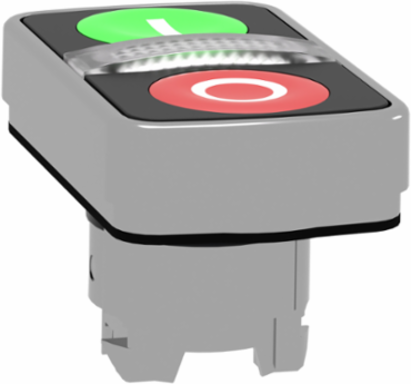

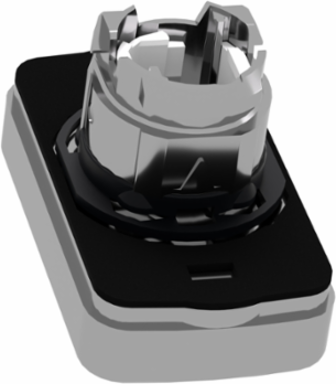

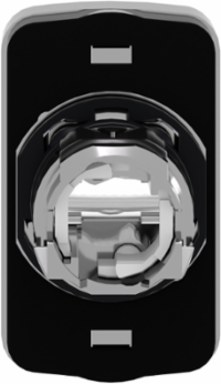

This Harmony XB4, illuminated double head has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism. It is marked with "I" and "O"symbols. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its pilot light and illuminated head with clear colors, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. it is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Features
- Featuring a specialized green "Start" and red "Stop" button in a single 22mm body, this dual-headed actuator allows for comprehensive machine control while occupying half the panel space. This streamlined design is perfect for compact industrial control stations, reducing drilling time and enclosure costs without sacrificing operator ergonomics.
- Equipped with a high-visibility, protected LED pilot light between the actuators, this device provides instant visual feedback of the machine s operational state. This eliminates operator confusion during high-speed production cycles and ensures that "Power On" or "Fault" statuses are clearly identifiable even from across a crowded manufacturing floor.
- Built with a rugged chromium-plated metal bezel, this XB4 series component is engineered to withstand extreme industrial environments, including high-pressure 1,000 psi water jets at 55 C. Its superior sealing protects internal contacts from dust, oil, and moisture, making it the ideal choice for food processing, automotive, and heavy-duty outdoor applications.
- Utilizing the industry-standard Schneider Electric mounting collar system, this actuator snaps securely into any 22mm hole and allows for tool-free attachment of electrical contact blocks. This modularity simplifies field maintenance and retrofitting, allowing industrial electricians to swap out wiring configurations in seconds without removing the entire button assembly from the panel.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France, United States |
|---|
Physical Attributes
| Color Of Marking | white/white, black marking when white caps, white marking when green, red or black caps |
|---|---|

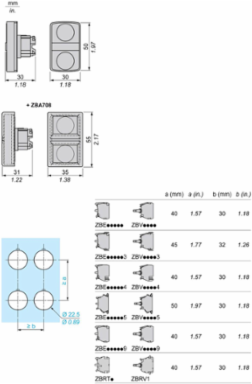

| Cad Overall Height | 50 mm |
| Cad Overall Depth | 30 mm |
|---|---|
| Cad Overall Width | 30 mm |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Bezel Material | chromium plated metal, chromium plated metal |
| Electrical Composition Code | M1 6 single front mounting integral LEDM2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED |
| Color Of Marking | white/white, black marking when white caps, white marking when green, red or black caps |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0089578168, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0082329825, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 37 % |
| Device Short Name | ZB4 |
| Group Of Product | flush/flush illum marked |
| Main Group | illum double head |
| Mechanical Durability | 1000000 cycles |
| Operators Description | green ''I'' - red ''O'' |
| Product Or Component Type | head for illuminated double-headed push-button |
| Range Of Product | Harmony XB4 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | rectangular |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.5 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| X Operators Description | green ''I'' - red ''O'' |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Cap/Operator Or Lens Colour | green/red |
| Package Weight(Lbs) | 57.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Customizable | 0, no |
| Operator Profile | green flush, I white)red flush, O white), 2 flush push-buttons - 1 central pilot light |
| Certificate Agency | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.0932951267 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.4 kg CO2 eq., 0.4214573099 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1808008EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 21 % |
| Compatibility Code | ZB4 |
| Electrical Shock Protection Class | class I conforming to IEC 61140 |
| Head Type | standard |
| Marking | I-O |
| Mounting Diameter | 22 mm |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Type Of Operator | spring return |
| X Operator Profile | 2 flush push-buttons - 1 central pilot light |
| Pep Code | ENVPEP1808008EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 75 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67 IEC 60529, IP69, IP69K |
| Take Back | No |
| Recycled Metal Content At Cr Level | 21 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.5319432359 |
| Environmental Disclosure | ENVPEP1808008EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | integral LED |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1808008EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1808008EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | head for illuminated double-headed push-button |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC000221 |
|---|
| ETIM 9 | EC000221 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic sub-assemblies |
|---|
