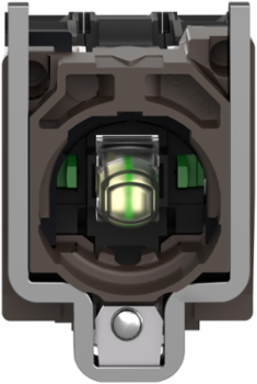

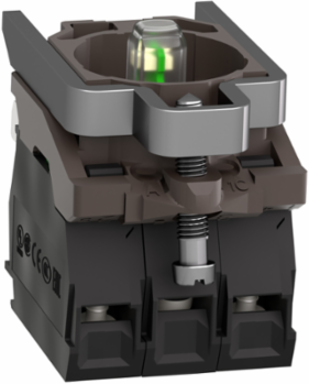

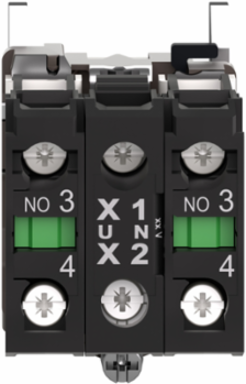

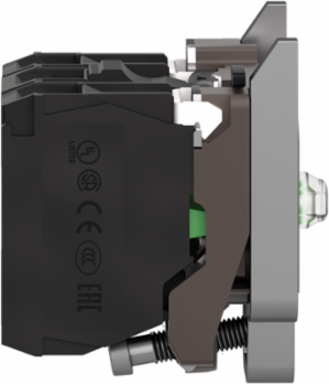

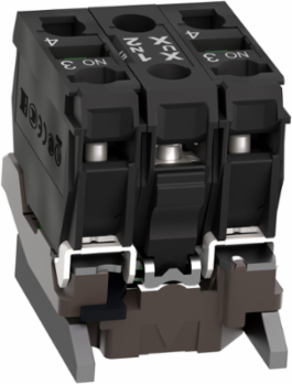

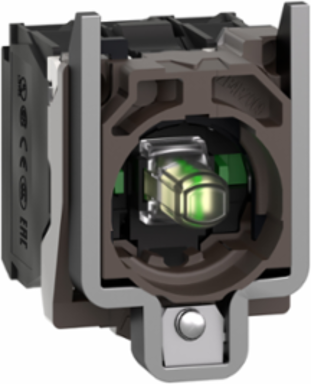

Schneider Electric ZB4BW0B13 Harmony XB4 Complete Body Assembly with 24V AC/DC Universal LED, 2 NO Contacts
- MPN: ZB4BW0B13
- PPN: SCH-ZB4BW0B13
CAD
$92.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4, light block with body/fixing collar is white, operates with a universal LED. It has 2 x NO contacts and a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Physical Attributes
- Light Source Color
- white, white

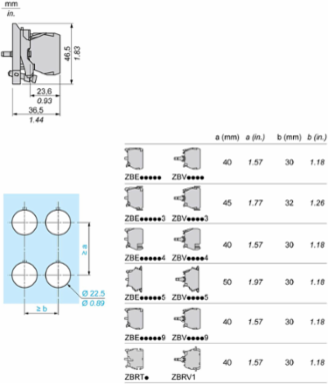

- Cad Overall Width
- 30 mm
Cad Overall Height47 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Contacts Composition
- 2 NO
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Terminals Description Iso N°1
- (13-14)NO, (13-14)NO
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.114952924
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.5 kg CO2 eq., 0.519295614
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 37 %
- Compatibility Code
- ZB4
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard
- Device Short Name
- ZB4
- Electromagnetic Emission
- class B IEC 55011
- Head Type
- standard
- Mechanical Durability
- 5000000 cycles
- Operating Torque
- 0.05 N.m NO changing electrical state
- Positive Opening
- without
- Product Or Component Type
- complete body/contact assembly and light block
- Range Of Product
- Harmony XB4
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-2-68 kV in free air (in insulating parts) IEC 61000-2-6
- Returnability
- Yes
- Service Life
- 100000 h at rated voltage and 25 °C
- Signalling Type
- steady
- Supply Voltage
- 24 V
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 7 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Short-circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Package Weight(Lbs)
- 70.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Light Sourceuniversal LED, universal LED
Light Source Colorwhite, white
Certificate AgencyDNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA
[Us] Rated Supply Voltage24 V, 24 V AC/DC 50/60 Hz
Carbon Footprint Of The Distribution Phase [A4]0.0110373099, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0101442105, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]7 kg CO2 eq., 6.5210704225
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1808008EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content21 %
Bulb Baseintegral LED
Contact Operationslow-break
Contacts Type And Composition2 NO
Current Consumption18 mA
Electrical Shock Protection Classclass I conforming to IEC 60536
Fixing Collar Materialzamak
Light Block Supplydirect
Operating Force2.3 N NO changing electrical state
Operating Travel2.6 mm NO changing electrical state)4.3 mm total travel)
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To Fast Transients2 kV IEC 61000-4-4
Sale Per Indivisible Quantity1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Versionv5.9.4
Supply Voltage Limits19.2-30 V DC21.6-26.4 V AC
Tightening Torque0.8-1.2 N.m IEC 60947-1
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP1808008EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %75
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509035
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 7.176500481
- Environmental Disclosure
- ENVPEP1808008EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level21 %
Mercury FreeYes
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1808008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete body/contact assembly and light block
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000204
ETIM 9EC000204
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
