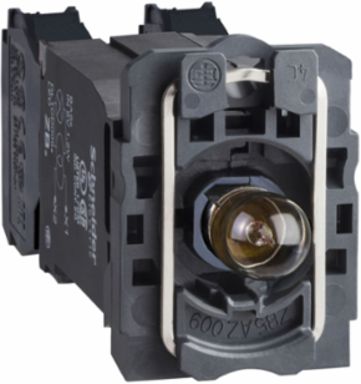

Harmony XB5 Light Block Assembly with Incandescent Bulb 220...240 V 1NO+1NC
Schneider Electric

Schneider Electric ZB5AW045 Harmony XB5 Light Block Assembly with Incandescent Bulb 220...240 V 1NO+1NC

  • MPN: ZB5AW045
  • PPN: SCH-ZB5AW045

CAD

$139.42

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, United States

Physical Attributes

Cad Overall Depth
79 mm
Cad Overall Width
30 mm
Cad Overall Height42 mm

Important Information Attributes

Customizable
0, no
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Head
cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate Agency
CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
[Us] Rated Supply Voltage
220...240 V, 220...240 V AC 50/60 Hz
Carbon Footprint Of The Distribution Phase [A4]
0.009224099821746882, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0088698752228164, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
41 kg CO2 eq., 40.518062244434354
Local Publishable Date
2026-01-12
Stocking Flag
Y
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2404014EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1930
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Average Percentage Of Recycled Metal Content
29 %
Bulb Base
BA 9s
Contact Operation
slow-break
Contacts Type And Composition
1 NO + 1 NC
Device Short Name
ZB5
Fixing Collar Material
plastic
Light Block Supply
via integral transformer 1.2 VA 6 V
Operating Force
2 N NC changing electrical state2.3 N NO changing electrical state
Operating Travel
1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Product Availability
Stock - Normally stocked in distribution facility
Protective Treatment
TH
Returnability
Yes
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Version
v5.9.4
Tightening Torque
0.8-1.2 N.m IEC 60947-1
Vibration Resistance
5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Supply Voltage 20 Supply Voltage
220...240 V
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Harmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 &amp; UL 508.
Functional-unit Unit
Unit
Energy Model - Manufacturing [A1-a3]
Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; UE-27
[Ith] Conventional Free Air Thermal Current
10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Short-circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)
118.0 g
Warranty (In Months)
18
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Light Sourceincandescent, incandescent
Contacts Composition1 NO + 1 NC
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description Iso N°1(11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.07397076648841354
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.22305882352941178
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content16 %
Compatibility CodeZB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard
Electrical Shock Protection Classclass II conforming to IEC 60536
Head Typestandard
Mechanical Durability5000000 cycles
Operating Torque0.05 N.m NO changing electrical state
Positive Openingwith IEC 60947-5-1 appendix K
Product Or Component Typecomplete body/contact assembly and light block
Range Of ProductHarmony XB5
Sale Per Indivisible Quantity1
Signalling Typesteady
Sustainable PackagingYes
Total Lifecycle Carbon Footprint41 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2404014_V1
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509035

Environment Attributes Main

Ambient Air Temperature For Operation
-40-70 °C, -40-70 °C
Take Back
No
China Rohs Regulation
X
Carbon Footprint
40.83318580949675
Environmental Disclosure
ENVPEP2404014_V1
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2024-06-09
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level29 %
Mercury FreeYes
Circularity ProfileENVEOLI2404014EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2404014_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
complete body/contact assembly and light block
Range Of ProductHarmony XB5

ETIM

ETIM 8
EC000204
ETIM 9EC000204

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Overview Attributes

Device Presentation
basic sub-assemblies
