Schneider Electric ZB4BW041 Harmony XB4 Complete Body/Contact Assembly with BA9s Incandescent Bulb, 220-240V, 1 NO
- MPN: ZB4BW041
- PPN: SCH-ZB4BW041
CAD
$121.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

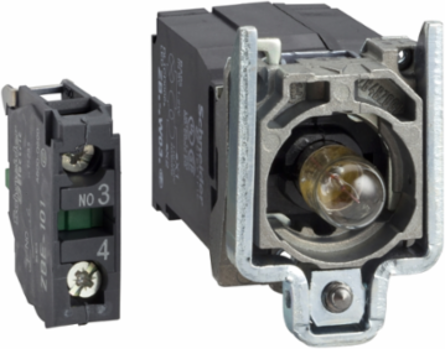

Schneider Electric's Harmony XB4 assembly combines a complete body and contact assembly with a BA9s incandescent bulb designed for efficient operation at 220-240V. This pilot device is ideal for automation and control applications, providing clear visual indicators to enhance system monitoring. With its robust construction and practical design, this light block ensures reliable performance, making it a valuable component in any control setup.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes

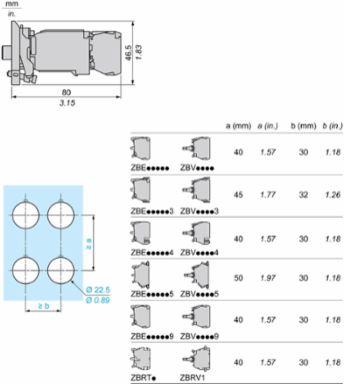

- Cad Overall Height
- 47 mm
Cad Overall Width30 mm
Important Information Attributes
- Customizable
- 0, no
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Certificate Agency
- DNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA
- [Us] Rated Supply Voltage
- 220...240 V, 220...240 V AC 50/60 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0220746199, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0202884211, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 48 kg CO2 eq., 48.1901112107
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1808008EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Average Percentage Of Recycled Metal Content
- 21 %
- Bulb Base
- BA 9s
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO
- Device Short Name
- ZB4
- Fixing Collar Material
- zamak
- Light Block Supply
- via integral transformer 1.2 VA 6 V
- Operating Force
- 2.3 N NO changing electrical state
- Operating Travel
- 2.6 mm NO changing electrical state)4.3 mm total travel)
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- Yes
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 50 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Connections - Terminals
- screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509035
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Light Sourceincandescent, incandescent
Contacts Composition1 NO
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description Iso N°1(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.229905848
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.0385912281
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content37 %
Compatibility CodeZB4
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard
Electrical Shock Protection Classclass I conforming to IEC 60536
Head Typestandard
Mechanical Durability5000000 cycles
Operating Torque0.05 N.m NO changing electrical state
Positive Openingwithout
Product Or Component Typecomplete body/contact assembly and light block
Range Of ProductHarmony XB4
Sale Per Indivisible Quantity1
Signalling Typesteady
Supply Voltage220...240 V
Tightening Torque0.8-1.2 N.m IEC 60947-1
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP1808008_V2-EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)138.0 g
Warranty (In Months)18
