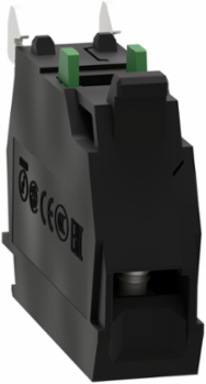

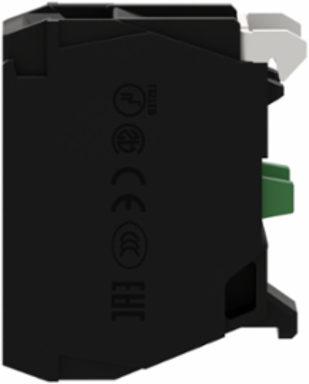

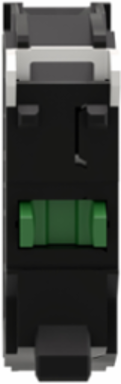

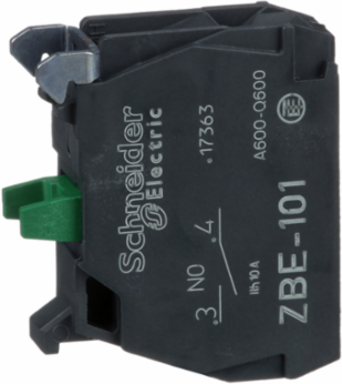

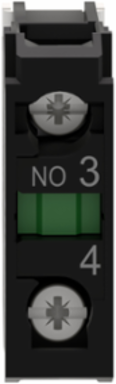

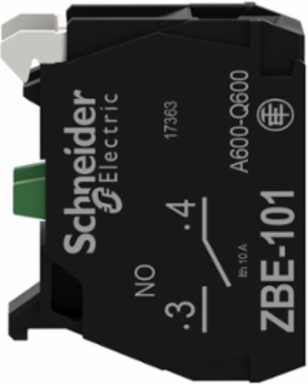

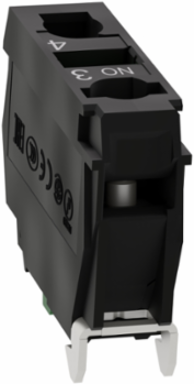

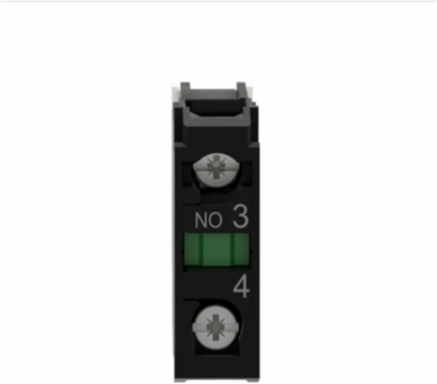

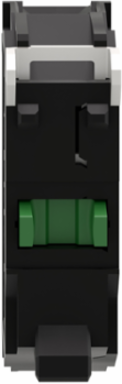

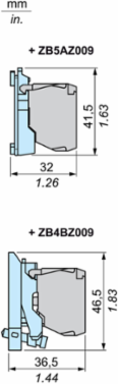

Schneider Electric ZBE101 Harmony XB4 Single Contact Block 1NO, IP20, -40-70 C

  • MPN: ZBE101
  • PPN: SCH-ZBE101
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $17.35

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It has clear color scheme. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

    Features

    • Universally compatible with all Schneider Electric Harmony XB4 (metal) and XB5 (plastic) 22mm operators. Whether you are building a new panel with a standard push button, selector switch, or emergency stop, this block snaps directly onto the mounting collar.
    • This is a 1 N.O. (Normally Open) contact block featuring a slow-break mechanism. It is the exact replacement or add-on you need for circuits that must close when actuated perfect for motor start buttons, PLC inputs, and signaling devices. (Looking for Normally Closed? You need the ZBE102).
    • Designed for fast, tool-free physical installation via a snap-fit front mount. Electrically, it utilizes highly secure screw clamp terminals that accept both rigid and flexible wires (up to 14 AWG), ensuring a vibration-resistant connection in heavy machinery.
    • Depending on your specific operator, you can stack multiple ZBE101 blocks together (up to 3 rows deep, or 9 total contacts on standard non-illuminated buttons) to control several distinct circuits from a single operator
    • Built for harsh factory environments, it features highly conductive silver alloy (Ag/Ni) contacts and boasts a mechanical life of 10 million cycles. Rated for 10A and up to 600V, and backed by strict UL, CSA, and IEC certifications, it guarantees long-term reliability for your commercial control systems.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, United States

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Contacts Materialsilver alloy (Ag/Ni), silver alloy (Ag/Ni)
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Shape Of Screw Headcross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.032671, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.11155
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content23 %
    Contact Block Typesingle
    Contacts Type And Composition1 NO
    Device Short NameZBE
    Mounting Of Blockfront mounting
    Operating Travel2.6 mm NO changing electrical state)4.3 mm total travel)
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTH
    Sale Per Indivisible Quantity5
    Software Versionv6.2.5-6
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Contacts Composition 61 NO
    Pep CodeENVPEP2304014EN
    Pep Verification Date2024-06-09
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]No energy used
    Recyclability Potential In %98
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]1.5778
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]38.54
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]1.1611
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]1.161
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Composition CodeC1 9 )C2 7 )C3 6 )C4 4 )C5 5 )C6 3 ), C7 4 )C8 2 ), C9 3 ), C12 6 ), M1 6 ), M2 4 ), M3 4 ), M5 2 ), M6 2 ), M7 6 ), M8 4 ), M9 2 ), SF1 3 ), SF2 2 ), MF1 2 ), MF2 2 ), C10 2 ), M4 2 )C13 1 )
    Range Of ProductHarmony XB5, Harmony XB4
    Certificate AgencyCCC, UL, DNV, GOST, LROS (Lloyds register of shipping), BV, CSA
    Carbon Footprint Of The Distribution Phase [A4]0.0023525, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.012671
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.027876
    Local Publishable Date2026-03-26
    Stocking FlagY
    Service Catalog ItemFinished good
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Percentage Of Recycled Metal Content13 %
    Compatibility CodeZBE
    Contact Operationslow-break
    Contacts Usagestandard contacts
    Mechanical Durability10000000 cycles
    Operating Force2.3 N NO changing electrical state
    Positive Openingwithout
    Product Or Component Typecontact block
    ReturnabilityYes
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Connections Terminals 8 Connections Terminalsscrew clamp terminals
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionPushbutton contact blocks are an important electrical component used in a variety of applications. They provide a way to control, monitor and switch electrical circuits on and off. This contact block consumes 0.002 W with 35% utilisation rate and the product has a life of 10 years and adhering to international standards IEC 60947-1 & IEC 60947-5-4.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    [Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
