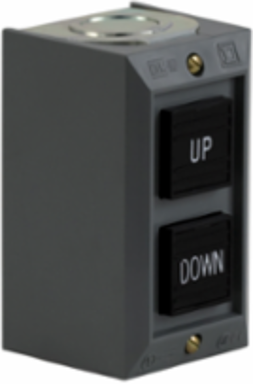

Schneider Electric 9001BG208 Harmony 9001B Control Station with 2 UP-DOWN Push Buttons, 5A, 600V AC, NEMA 1
- MPN: 9001BG208
- UPC: 785901390220
- PPN: SCH-9001BG208
- UNSPSC: 39121565
CAD
$128.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a UP push button with a normally open contact and a DOWN push button with a normally open contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Features
- Metal bezel. Ideal for severe environments, especially applications requiring high impact and vibration resistance
- Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery
- Impact resistant metal bezel and body ensures product continues to operate even after severe accidents
- High brightness for easy identification of function and operation mode, even in brightly lit environments
- Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
Complementary Attributes
| Ie Rated Operational Current | 5 A 600 V |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CE, CSA LR25490 class 3211 03, UL listed file E42259 CCN NKCR |
| Local Publishable Date | 2026-08-24 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Contacts Type And Composition | 2 NO |
| Dc Control Voltage | 125-600 V |
| Environmental Characteristic | standard environment |
| Operator Profile | 2 projecting push-buttons |
| Product Or Component Type | complete control station |
| Returnability | Yes |
| Ac Control Voltage 50 Hz | 125-600 V |
| Number Of Command Positions | 2 |
| Number Of Push Buttons | 2 |
| Housing Color | grey |
| Nbr. Of Units In Pkg. | 1 |
| Emergency Power Off Epo | no |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Station Composition | 2 push-buttons UP-DOWN |
| Device Short Name | 9001BG |
| Housing Material | metal |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony 9001B |
| Sustainable Packaging | Yes |
| Ac Control Voltage 60 Hz | 125-600 V |
| Number Of Contacts As Normally Open Contact | 2 |
| Color Of Cover | grey |
| Connections Terminals | screw clamp terminal |
| Customs Code | 8536509033 |
| Warranty In Months | 18 |
Environment Attributes Main
| Nema Degree Of Protection | NEMA 13, NEMA 1 |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503027EN |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | complete control station |
|---|
| Range Of Product | Harmony 9001B |
|---|
ETIM
| ETIM 8 | EC000225 |
|---|---|
| ETIM 10 | EC000225 |
| ETIM 9 | EC000225 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
