Square D 9001BG303 Harmony 9001B Control Station with 3 Push Buttons, 5A, 600V AC, NEMA 1
Square D 9001BG303 Harmony 9001B Control Station with 3 Push Buttons, 5A, 600V AC, NEMA 1
- MPN: 9001BG303
- UPC: 785901794202
- PPN: SCH-9001BG303
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$205.38/ EA
Description

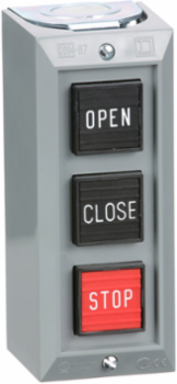

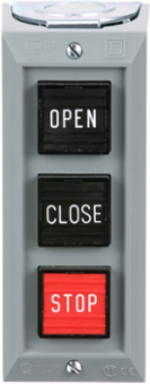

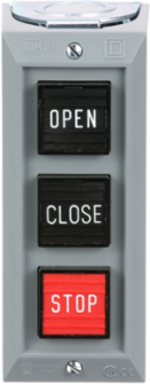

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has three square momentary push buttons. It has a OPEN push button with a normally open and a normally closed contact. It has a CLOSE push button with a normally open and a normally closed contact. It also has a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1304002
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1304002EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Product Certifications
- CE || UL listed file E42259 CCN NKCR || CSA LR25490 class 3211 03
- Nema Degree Of Protection
- NEMA 1
Environmental Characteristicstandard environment
Specifications
- Range Of Product
- Harmony 9001B
- Device Short Name
- 9001BG
Product Or Component Typecomplete control station
Complementary
- Connections - Terminals
- screw clamp terminal
- Control Station Composition
- 3 push-buttons OPEN-CLOSE-STOP
- Type Of Installation
- indoor
Contacts Type And Composition2 NO + 3 NC
[Ie] Rated Operational Current5 A 600 V
Device Mountingsurface
