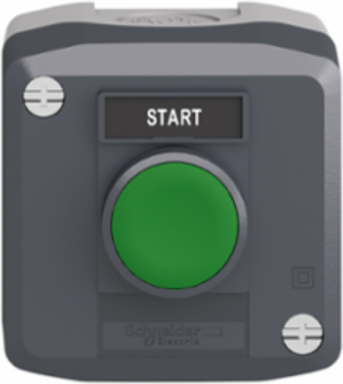

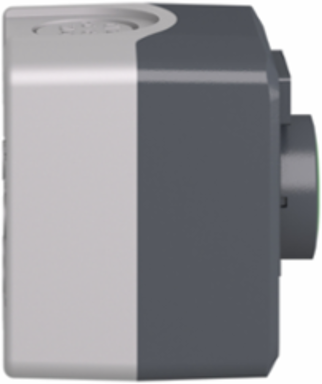

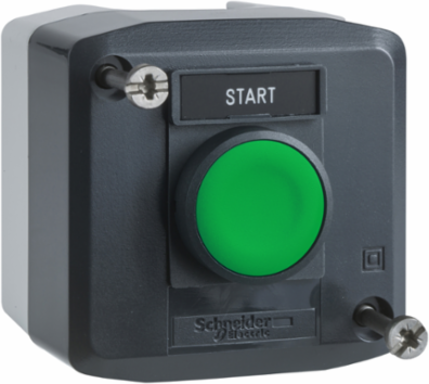

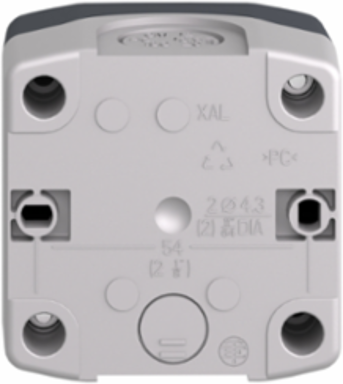

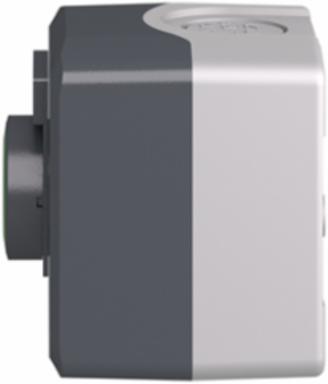

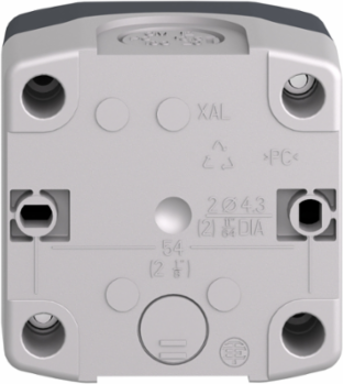

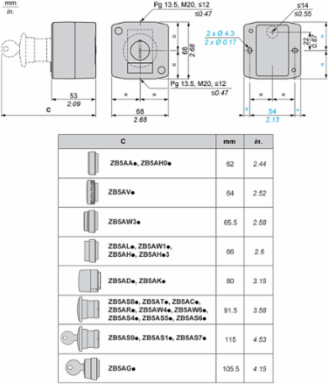

Schneider Electric XALD101H29 Harmony Control Station, 1 Green Push Button, IP66/IP67/IP69K

  • MPN: XALD101H29
  • PPN: SCH-XALD101H29
  • UNSPSC: 39122216
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $65.60

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XALD dark grey control station for start/stop function is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with flush push buttons is ideal to control start / stop operation in your machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

    Features

    • Protected LED illuminated lens units
    • Low load electrical contact
    • Screw clamp or pins for printed circuit board connection
    • Single brand solution
    • Good resistance to chemical agents
    • With electrical double insulation
    • Class II conforming to IEC 60536
    • IP66;IP67;IP69;IP69K and NEMA 4 dust and damp proofing
    • Complies with IEC;UL and CSA standards
    • CE approved

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance
    Weight139 g

    Complementary Attributes

    Ie Rated Operational Current6 A 120 V, AC-15, A600 IEC 60947-5-13 A 240 V, AC-15, A600 IEC 60947-5-11.2 A 600 V, AC-15, A600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    Uimp Rated Impulse Withstand Voltage6 kV IEC 60947-1
    Ui Rated Insulation Voltage600 V 3)IEC 60947-1

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Carbon Footprint Of The Distribution Phase A40.09816477364450564, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0005785923574811342, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0.004585392125597635
    Local Publishable Date2026-03-26
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2506022EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Cable Entry1 knock-out for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    Contact Operationslow-break
    Control Station Applicationstart function
    Dc Control Voltage125-600 V
    Housing Materialplastic
    Materialpolycarbonate
    Operating Force3.8 N NO changing electrical state
    Operator Profile1 flush push-button
    Overvoltage Categoryclass II conforming to IEC 60536
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Or Component Typecomplete control station
    Range Of ProductHarmony XALD
    ReturnabilityYes
    Software Versionv6.3.0.1-4
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Vibration Resistance5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    Ac Control Voltage 50 Hz120-600 V
    Number Of Command Positions1
    Number Of Push Buttons1
    Color Of Coverdark greydark grey RAL 7016)
    Connections Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Data Sourceextrapolated product
    Customs Code8536509035
    Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y20
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
    Certificate AgencyJIS C8201-5-1, IEC 60947-5-5, IEC 60947-1, CSA C22.2 No 14, UL 508, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-1
    Carbon Footprint Of The End Of Life Phase C1 To C40.3 kg CO2 eq., 0.28754403494855657
    Carbon Footprint Of The Manufacturing Phase A1 To A30.7 kg CO2 eq., 0.7311076393857063
    Local Data StatusPublishable
    Return IndicatorY
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Compatibility CodeXALD
    Contacts Materialsilver alloy (Ag/Ni)
    Control Station Composition1 flush push-button, green 1 NO START
    Device Short NameXALD
    Marking Locationmarking on legend holder
    Mechanical Durability10000000 cycles
    Operating Travel2.6 mm NO changing electrical state)4.3 mm total travel)
    Operators Descriptiongreen ''START'' 1 NO
    Positive Openingwithout
    Product Destinationfor XB5 Ø 22 mm control and signalling units
    Protective TreatmentTH
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint1 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Ac Control Voltage 60 Hz120-600 V
    Number Of Contacts As Normally Open Contact1
    Color Of Base Of Enclosurelight grey RAL 7035)
    Housing Colorgrey
    Database Version2024-01
    Nbr. Of Units In Pkg.1
    Ith Conventional Free Air Thermal Current10 A IEC 60947-5-1
    Emergency Power Off Epono
    Functional Unit DescriptionHarmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
    Functional Unit Unitunit
    Recyclability Potential In %18

    Environment Attributes Main

    Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP66 IEC 60529, IP67, IP69, IP69K, IP66/IP67/IP69/IP69K
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint1.1219804324618472
    Environmental DisclosureENVPEP2506022EN
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2506022EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of Protection/13, NEMA 13, NEMA 4X
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2506022EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2025-06-30
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typecomplete control station
    Range Of ProductHarmony XALD

    ETIM

    ETIM 8EC000225
    ETIM 10EC000225
    ETIM 9EC000225

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

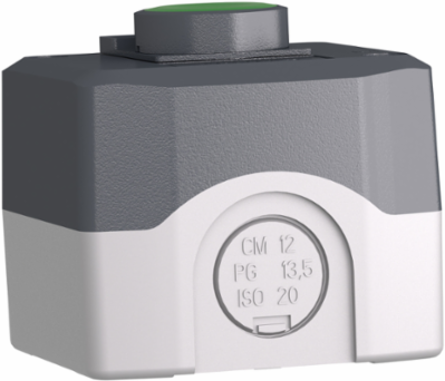

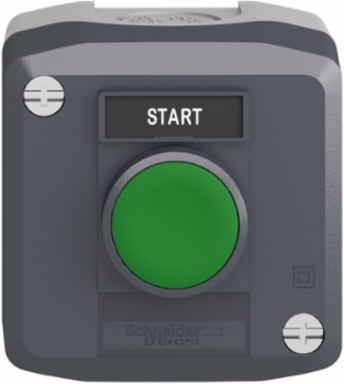

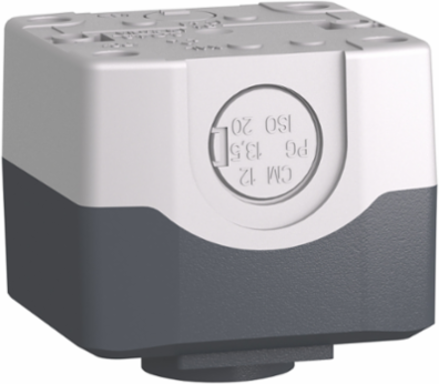

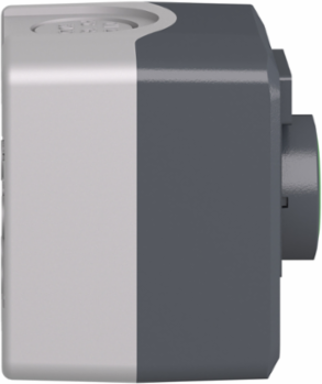

    Harmony Control Station, 1 Green Push Button, IP66/IP67/IP69K
