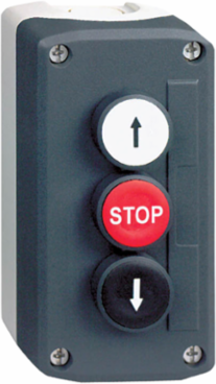

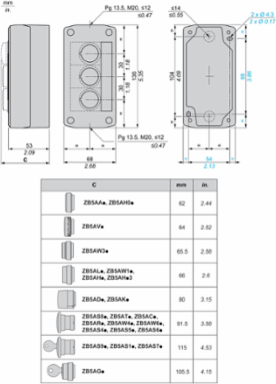

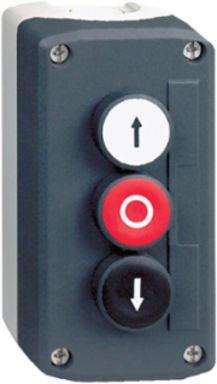

Schneider Electric XALD326H7 Harmony Control Station, 3 Push Buttons, IP66 Rated, Dark Grey

  • MPN: XALD326H7
  • PPN: SCH-XALD326H7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $159.91

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This control station from Schneider Electric features three push buttons, designed for ease of use and reliability in various automation and control applications. Rated IP66, it offers robust protection against dust and water, making it suitable for challenging environments. The dark grey finish provides a sleek and professional look, ensuring it integrates seamlessly into your existing systems. Whether you are setting up industrial controls or managing automation tasks, this Harmony Control Station is engineered to provide reliable performance and durability in demanding settings.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, United States

    Physical Attributes

    Color Of Marking
    black marking when white caps, white marking when green, red or black caps
    Color Of Cover
    dark greydark grey RAL 7016)
    Color Of Base Of Enclosurelight grey RAL 7035)
    Housing Colorgrey

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Control Station Composition
    1 flush push-button, black 1 NO, white down arrow, 1 flush push-button, white 1 NO, black up arrow, 1 flush push-button, red 1 NC STOP
    Electrical Reliability
    λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
    Color Of Marking
    black marking when white caps, white marking when green, red or black caps
    [Ie] Rated Operational Current
    6 A 120 V, AC-15, A600 IEC 60947-5-13 A 240 V, AC-15, A600 IEC 60947-5-11.2 A 600 V, AC-15, A600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.6 kg CO2 eq., 0.637147933555075
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    2 kg CO2 eq., 1.6200082944661693
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    1
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Compatibility Code
    XALD
    Contacts Material
    silver alloy (Ag/Ni)
    Dc Control Voltage
    125-600 V
    Electrical Shock Protection Class
    class II conforming to IEC 60536
    Marking Location
    marking on push-button
    Mechanical Durability
    5000000 cycles
    Operating Travel
    1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
    Operators Description
    white ''up arrow'' 1 NO - red ''STOP'' 1 NC - black ''down arrow'' 1 NO
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    complete control station
    Range Of Product
    Harmony XALD
    Returnability
    Yes
    Software Version
    v6.3.0.1-4
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Vibration Resistance
    5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    Ac Control Voltage 50 Hz
    120-600 V
    Number Of Command Positions
    3
    Number Of Contacts As Normally Open Contact
    3
    Color Of Base Of Enclosure
    light grey RAL 7035)
    Housing Color
    grey
    Database Version
    2024-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Harmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; High voltage; 2020; France, FR
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2020; Global, GLO
    Recyclability Potential In %
    18
    [Ui] Rated Insulation Voltage
    600 V 3)IEC 60947-1
    Connections - Terminals
    screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Emergency Power Off (Epo)
    no
    Package Weight(Lbs)
    294.835 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Certificate AgencyCSA, UL Listed
    Carbon Footprint Of The Distribution Phase [A4]0.21751618908278947, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0012820607633394915, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.01375617637679291
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2506022EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Cable Entry2 knock-outs for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    Contact Operationslow-break
    Control Station Applicationthree functions
    Device Short NameXALD
    Housing Materialplastic
    Materialpolycarbonate
    Operating Force3.5 N NC changing electrical state3.8 N NO changing electrical state
    Operator Profile3 flush push-buttons
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Destinationfor XB5 Ø 22 mm control and signalling units
    Protective TreatmentTH
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint2 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Ac Control Voltage 60 Hz120-600 V
    Number Of Contacts As Normally Closed Contact3
    Number Of Push Buttons3
    Color Of Coverdark greydark grey RAL 7016)
    Pep CodeENVPEP2506022EN
    Pep Verification Date2025-06-30
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    [Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
    Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8537109170

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP69, IP69K, IP67, IP66/IP67/IP69/IP69K
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    2.489710654244166
    Environmental Disclosure
    ENVPEP2506022EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2506022EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of Protection/13, NEMA 13, NEMA 4X
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2506022EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2025-06-30
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    complete control station
    Range Of ProductHarmony XALD

    ETIM

    ETIM 8
    EC000225
    ETIM 9EC000225

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
