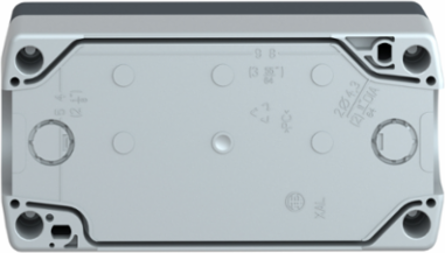

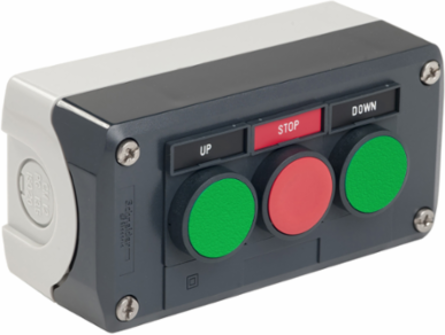

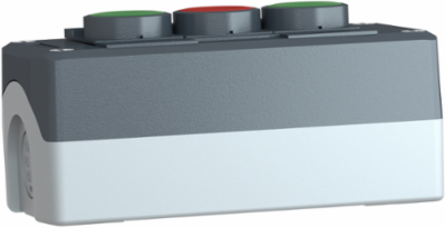

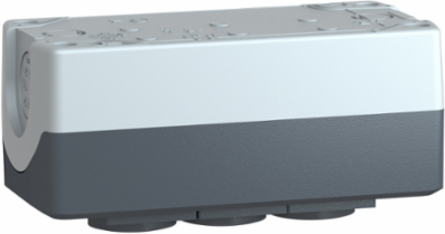

Schneider Electric XALD321H29H7 Control station, Harmony, plastic, dark grey, 3 flush push buttons, green NO, red NC, green NO, 22mm, spring return, legend holder, UL CSA certified

Control station, Harmony, plastic, dark grey, 3 flush push buttons, green NO, red NC, green NO, 22mm, spring return, legend holder, UL CSA certified
Control station, Harmony, plastic, dark grey, 3 flush push buttons, green NO, red NC, green NO, 22mm, spring return, legend holder, UL CSA certified
Control station, Harmony, plastic, dark grey, 3 flush push buttons, green NO, red NC, green NO, 22mm, spring return, legend holder, UL CSA certified
Control station, Harmony, plastic, dark grey, 3 flush push buttons, green NO, red NC, green NO, 22mm, spring return, legend holder, UL CSA certified
Control station, Harmony, plastic, dark grey, 3 flush push buttons, green NO, red NC, green NO, 22mm, spring return, legend holder, UL CSA certified
  • MPN: XALD321H29H7
  • PPN: SCH-XALD321H29H7

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$153.08/ EA

    Description

    This Harmony XALD yellow control station with 3 functions is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with 3 push buttons for 3 functions enables machine builders to easily add required control and signalling functionality on their machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

    Specifications

    Specifications

    Control Station Application
    three functions
    Range Of Product
    Harmony XALD
    Control Station Composition
    1 flush push-button, red 1 NC O || 1 flush push-button, green 1 NO down || 1 flush push-button, green 1 NO UP
    Product Or Component Type
    complete control station
    Marking Location
    marking on legend holder
    Colour Of Cover
    dark grey RAL 7016)
    Device Short Name
    XALD
    Product Destinationfor XB5 Ø 22 mm control and signalling units
    Colour Of Base Of Enclosurelight grey RAL 7035)

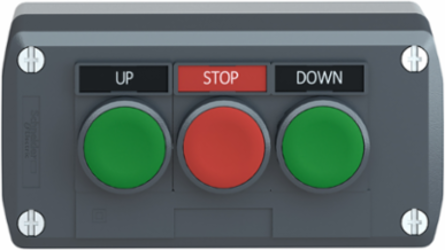

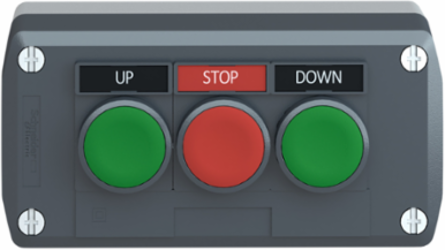

    Operators Descriptiongreen ''UP'' 1 NO - red ''O'' 1 NC - green ''DOWN'' 1 NO
    Materialpolycarbonate
    Operator Profile3 flush push-buttons
    Contact Operationslow-break

    Complementary

    Operating Force
    3.5 N NC changing electrical state || 3.8 N NO changing electrical state
    Operating Travel
    1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
    Positive Opening
    with EN/IEC 60947-5-1 appendix K
    Cable Entry

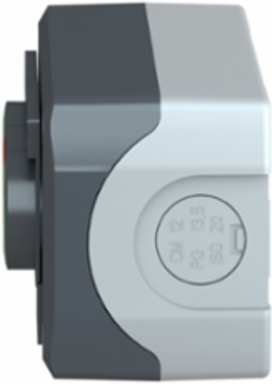

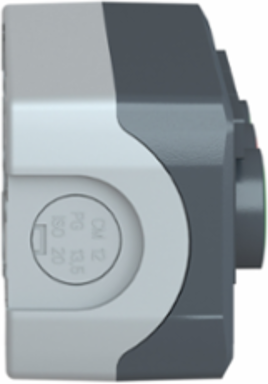

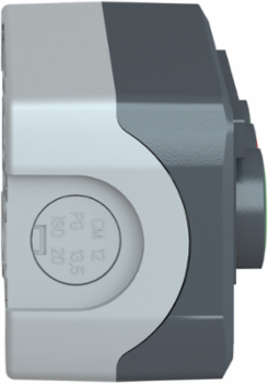

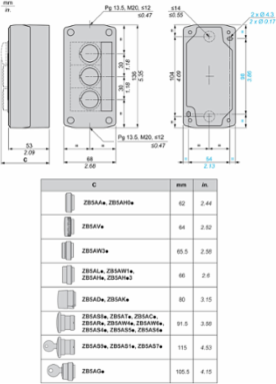

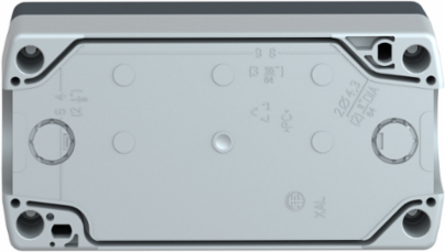

    2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    [Uimp] Rated Impulse Withstand Voltage
    6 kV EN/IEC 60947-1
    Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    [Ui] Rated Insulation Voltage
    600 V 3)EN/IEC 60947-1
    Mechanical Durability
    10000000 cycles
    Tightening Torque
    0.8-1.2 N.m EN/IEC 60947-1
    Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
    Contacts Materialsilver alloy (Ag/Ni)
    [Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
    Net Weight0.299 kg
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
    [Ie] Rated Operational Current6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
    Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4
    Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1806010EN
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationFree of Substances of Very High Concern above the threshold
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileENVEOLI1806010EN

    Environment

    Product Certifications
    UL listed || CSA
    Ambient Air Temperature For Operation
    -40-70 °C
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Ip Degree Of Protection
    IP66 IEC 60529 || IP69 || IP69K || IP67
    Nema Degree Of Protection
    NEMA 13 || NEMA 4X
    Protective Treatment
    TH
    Ik Degree Of ProtectionIK03 conforming to EN 50102
    StandardsEN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || JIS C8201-1
    Vibration Resistance5 gn 12-500 Hz)IEC 60068-2-6
    Ambient Air Temperature For Storage-40-70 °C
    Electrical Shock Protection Classclass II IEC 60536
