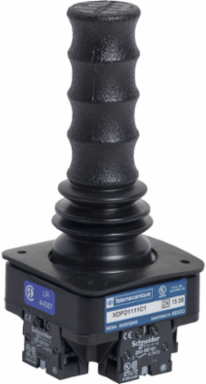

Schneider Electric XDPD1111C1 Complete Joystick Controller, Harmony XK, 8 Directions, IP65, 0.5 kg

MPN: XDPD1111C1
UPC: 785901320746
PPN: SCH-XDPD1111C1
UNSPSC: 39122227

$434.63

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This complete joystick controller provides an ergonomic interface for controlling your machines The joystick pocess 8 directions with 1 NO contact per direction It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments It is easily installed into a standard panel cut-outs and connected to control circuits with classic screw-clamp connections It provides a smooth and precise control of your machine in a variety of industrial applications

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Depth	44 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	IEC 60947-5-5, IEC 60947-5-4, JIS C 4520, UL 508, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI1310004EN
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Tier	2
Function Option	Standard
Bezel Material	plastic
Contacts Usage	standard
Mechanical Durability	1000000 cycles
Operator Direction Information	1 direction
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Repair Index	A
Return	spring return
Sale Per Indivisible Quantity	1
Height Nominal	158.6 mm
Nbr. Of Units In Pkg.	1
Product Repair Index Dam Document Id	XB4BS8442-ENVREPAIR-A-EN

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Contacts Type And Composition	8 NO
Device Short Name	XDP
Mounting Diameter	48 mm
Operator Position Information	2 positions
Product Or Component Type	complete joystick controller
Range Of Product	Harmony XK
Returnability	No
Sustainable Packaging	No
Width Nominal	65 mm
Customs Code	8536509031
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Operation	-40-60 °C, -40-60 °C
Mercury Free	Yes
Environmental Disclosure	ENVPEP1310004EN
Ip Degree Of Protection	IP65
Pep Code	ENVPEP1310004EN

China Rohs Regulation	X
Circularity Profile	ENVEOLI1310004EN
Eu Rohs Directive	Compliant By Exemption
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
