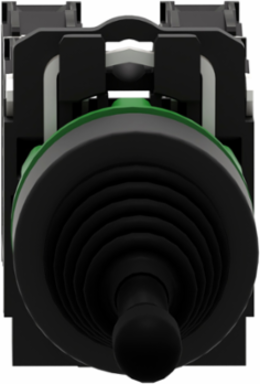

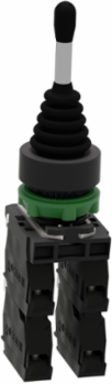

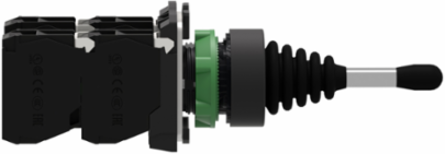

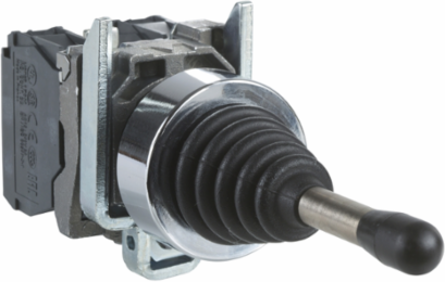

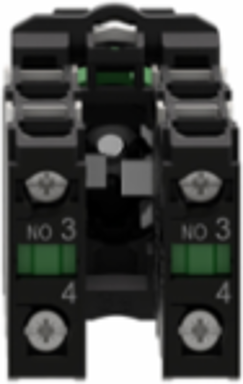

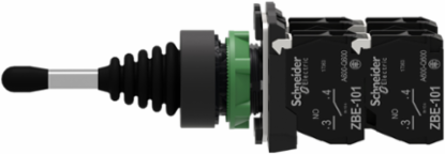

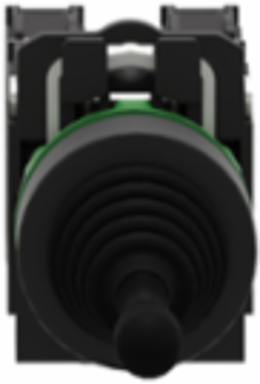

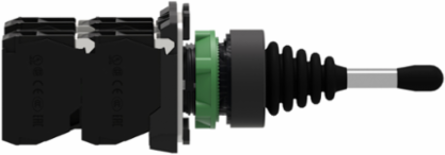

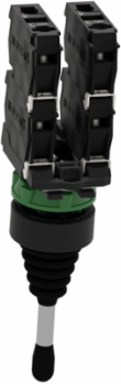

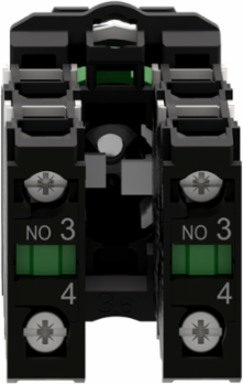

Schneider Electric XD5PA14 Harmony XB5 Joystick Controller 22mm, 4 Directions, IP66

  • MPN: XD5PA14
  • PPN: SCH-XD5PA14
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $336.23

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

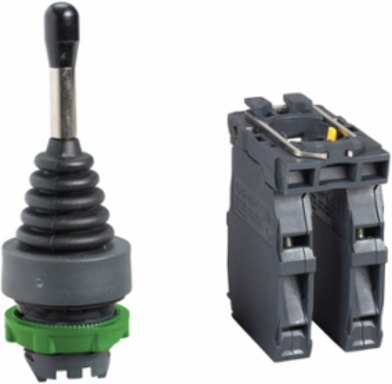

    This Harmony XB5, joystick controller operates with 4 direction stay-put mechanism. It has 1 x NO contact and a plastic bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is deal for applications requiring good resistance to chemical agents and/or double electrical insulation.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France

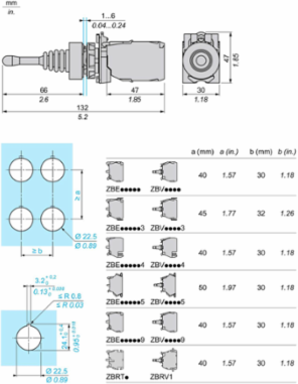

    Depth132 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Shape Of Screw Head
    cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Certificate Agency
    CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
    Connections - Terminals
    screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.1 kg CO2 eq., 0.1088228533902479
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.5 kg CO2 eq., 0.48271876539156133
    Local Data Status
    Publishable
    Return Indicator
    Y
    Future Msrp
    202.07
    Stock Policy
    1
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Product Repair Index Dam Doc
    XB4BS8442-ENVREPAIR-A-EN
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Bezel Material
    plastic
    Contact Operation
    slow-break
    Contacts Type And Composition
    1 NO
    Device Short Name
    XD5
    Fixing Collar Material
    plastic
    Mounting Diameter
    22 mm
    Operator Direction Information
    4 directions
    Operator Profile
    54 mm long operating shaft
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Product Repair Index
    A
    Range Of Product
    Harmony XB5
    Returnability
    Yes
    Shape Of Signaling Unit Head
    round
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    0.6 kg CO2 eq.
    Vibration Resistance
    5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Operator Dir Information
    4 directions
    Type Of Operator 3 Type Of Operator
    stay put
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    This joystick controller operates with 2 direction spring return to zero position mechanism. It has 1 x NO contact and a plastic bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections with power consumption of 0.002W at active phase 7.2%. The product has a 10-year lifespan and adheres to IEC 60947-5-5 and 60947-5-1 standards.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal
    47 mm
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Nbr. Of Units In Pkg.
    1
    Product Repair Index - Dam Document Id
    XB4BS8442-ENVREPAIR-A-EN
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    [Ie] Rated Operational Current0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
    Carbon Footprint Of The Distribution Phase [A4]0.010461336397964208, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.03778821211623707, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0.0052564000000000005
    Local Publishable Date2026-01-12
    Future Imap156.08
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2308014EN
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Compatibility CodeXD5
    Contacts Materialsilver alloy (Ag/Ni)
    Contacts Usagestandard
    Electrical Shock Protection Classclass II conforming to IEC 60536
    Mechanical Durability1000000 cycles
    Notch Per Direction1-1
    Operator Position Information5 positions
    Positive Openingwithout
    Product Or Component Typejoystick controller
    Protective TreatmentTH
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity1
    Software Versionv5.9.4
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Type Of Operatorstay put
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Operator Pos Information5 positions
    Pep CodeENVPEP2308014EN
    Pep Verification Date2025-02-23
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
    Width Nominal30 mm
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)80.000 g
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    UL type 4X/13, NEMA 13, NEMA 4X
    Reach Free Shvc
    Yes
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2308014EN
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2308014EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.6450475672960105
    Environmental DisclosureENVPEP2308014EN
    Ip Degree Of ProtectionIP66 IEC 60529
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2025-02-23
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    joystick controller
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8
    EC000632
    ETIM 9EC000632

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
