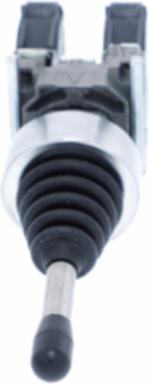

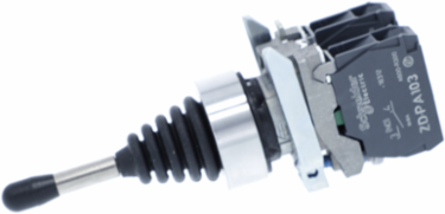

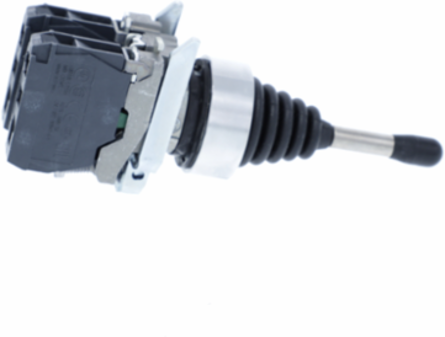

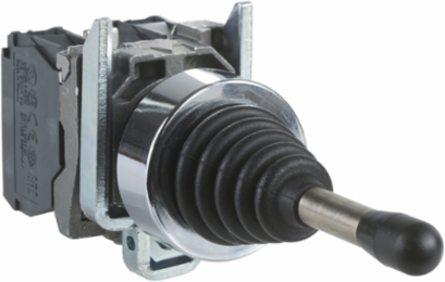

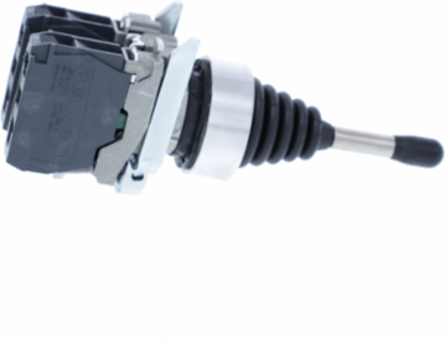

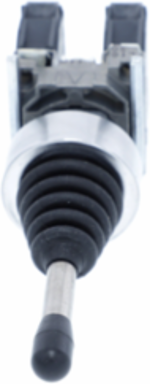

Schneider Electric XD4PA12 Harmony XB4 Joystick Controller 22mm 2 Directions IP66

MPN: XD4PA12
PPN: SCH-XD4PA12
UNSPSC: 39122227

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$266.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB4, joystick controller operates with 2-direction stay-put mechanism. It has 2 x NO (1 per direction) contacts and a chromium-plated metal bezel. This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Faston connector or spring terminal
Excellent mechanical connection with operator head
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Weight	116 g

Physical Attributes

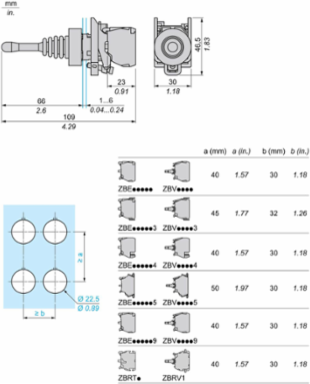

Cad Overall Depth	109 mm
Cad Overall Width	30 mm

Cad Overall Height	46.5 mm

Complementary Attributes

Ie Rated Operational Current	0.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage	6 kV IEC 60947-1

Ui Rated Insulation Voltage	600 V 3)IEC 60947-1

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Bezel Material	chromium plated metal, chromium plated metal
Electrical Reliability	λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Operator Pos Information	3 positions
Carbon Footprint Of The Distribution Phase A4	0.0405076106, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.019128708, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0 kg CO2 eq., 0.0059935
Local Publishable Date	2026-05-08
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2302014EN
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Operation	slow-break

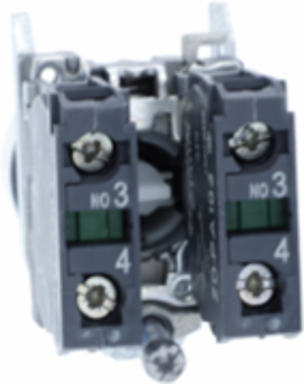

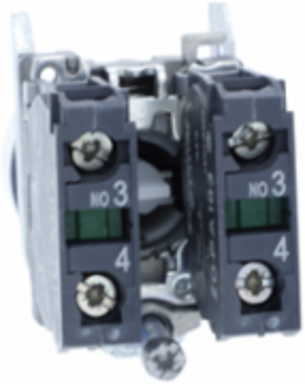

Contacts Type And Composition	1 NO
Device Short Name	XD4
Fixing Collar Material	zamak
Mounting Diameter	22.5 mm
Operator Direction Information	2 directions
Positive Opening	without
Product Or Component Type	joystick controller
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals	screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A IEC 60947-5-1
Product Repair Index Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Functional Unit Description	This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections with power consumption of 0.004W at active phase 7.2% in a 10-year lifespan and adheres to IEC 60947-5-5 and 60947-5-1 standards.
Functional Unit Unit	Unit
Recyclability Potential In %	42

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Head	cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate Agency	CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.1447844248
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.8 kg CO2 eq., 0.7625922124
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	XD4
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard
Electrical Shock Protection Class	class I conforming to IEC 60536
Mechanical Durability	1000000 cycles
Notch Per Direction	1-1
Operator Position Information	3 positions
Product Availability	Stock - Normally stocked in distribution facility
Product Repair Index	A
Range Of Product	Harmony XDA
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Type Of Operator	stay put, long operating shaft 54 mm
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Type Of Operator 21 Type Of Operator	stay put
Data Source	extrapolated product
Customs Code	8536509065
Short Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Nema Degree Of Protection	UL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2302014EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.9730064558
Environmental Disclosure	ENVPEP2302014EN
Ip Degree Of Protection	IP66 IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2302014EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
