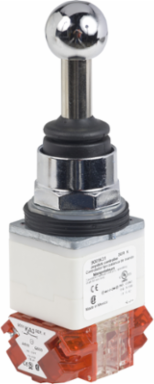

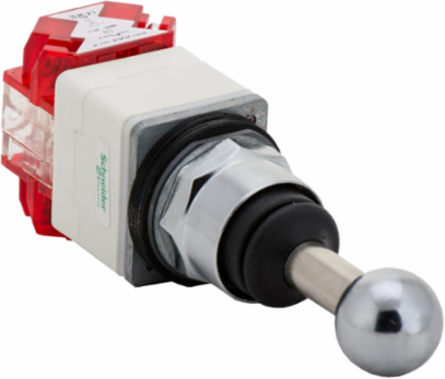

Schneider Electric 9001K31H8 Harmony Joystick Controller, 30 mm, 2 Directions, IP66, 2 NC

MPN: 9001K31H8
UPC: 785901028215
PPN: SCH-9001K31H8
UNSPSC: 39122227

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$381.68

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony 9001K, joystick controller has 3 positions, operates with spring return to center position mechanism. It has a chromium-plated metal bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Features

Improved security thanks to finger-safe contact blocks and light modules
Robustness to withstand the harshest environments
Easy, secure mounting system
Automatic self-grounding operators without additional wiring
A large metal set of accessories to customize your product
Single screw Contact Block Fastening

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Physical Attributes

Size	30 mm

Complementary Attributes

Ie Rated Operational Current	3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
Icm Rated Short Circuit Making Capacity	12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 240 V AC-15, 7200 VA60 kA 120 V AC-15, 7200 VA
Uimp Rated Impulse Withstand Voltage	2.5 kV IEC 60947-1

Rated Breaking Capacity	3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13
Ui Rated Insulation Voltage	250 V 3)IEC 60947-1

Important Information Attributes

Certificate Agency	NEMA, UL 508
Local Publishable Date	2026-08-06
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Bezel Material	metal
Contact Operation	standard
Contacts Type And Composition	2 NC
Device Short Name	9001K
Operating Position	vertical
Operator Profile	80 mm long operating shaft
Positive Opening	with IEC 60947-5-2
Product Or Component Type	joystick controller
Range Of Product	Harmony 9001K
Returnability	Yes
Shape Of Screw Head	cross slotted
Shock Resistance	50 gn IEC 60068-2-27
Tightening Torque	0.8-0.8 N.m IEC 60947-1
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals	screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Customs Code	8538908180
Short Circuit Protection	10 A cartridge fuse IEC 60947-5-1

Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Product Kit Identifier	N
Compatibility Code	9001K
Contacts Material	silver alloy contacts
Contacts Usage	standard
Mounting Diameter	30 mm
Operator Direction Information	2 directions
Overvoltage Category	II conforming to IEC 61140
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Return	to centre
Sale Per Indivisible Quantity	1
Shape Of Signaling Unit Head	octagonal
Sustainable Packaging	Yes
Type Of Operator	spring returnto centre spring return
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A
Warranty In Months	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Nema Degree Of Protection	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Ip Degree Of Protection	IP66 IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
