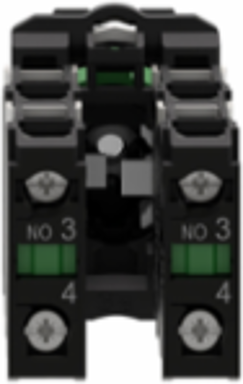

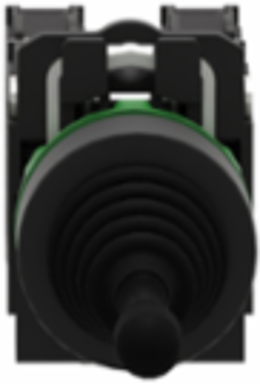

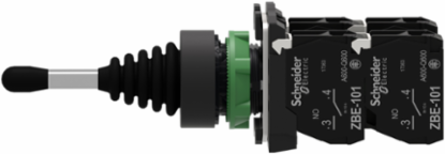

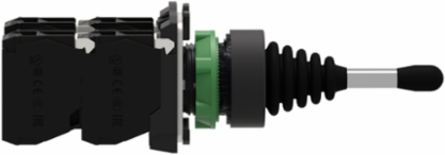

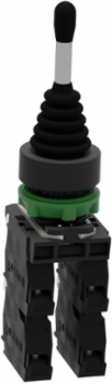

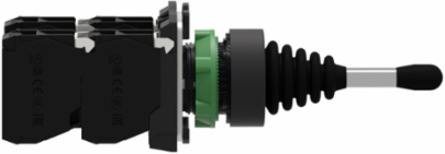

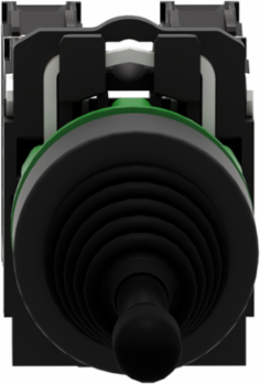

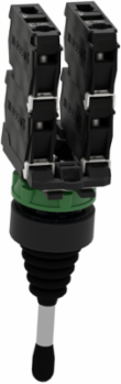

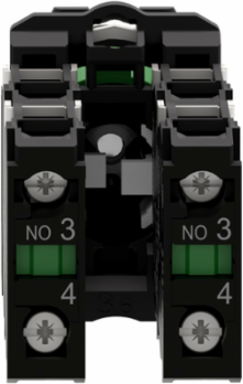

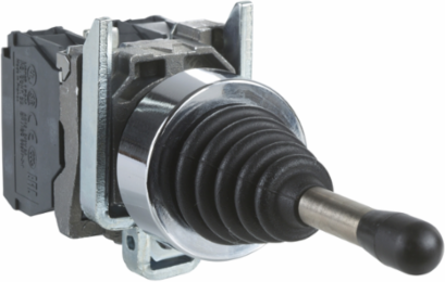

Schneider Electric XD5PA24 Harmony XB5 Joystick Controller 22mm, 4 Directions, IP66
Schneider Electric XD5PA24 Harmony XB5 Joystick Controller 22mm, 4 Directions, IP66
- MPN: XD5PA24
- PPN: SCH-XD5PA24
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$336.23/ EA
Description

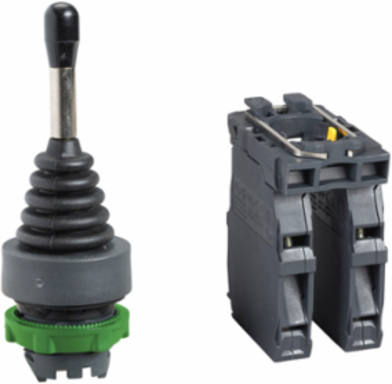

This Harmony XB5, joystick controller operates with 4 direction spring return to zero position mechanism. It has 1 x NO contact and a plastic bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is deal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Specifications
Environment
- Product Certifications
- LROS (Lloyds register of shipping) || DNV || UL listed || GL || CSA || BV
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Protective Treatment
- TH
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsUL 508 || IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 60536
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Contacts Usage
- standard
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Positive Opening
- without
- Net Weight
- 0.077 kg
- Device Presentation
- complete product
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Contact Operation
- slow-break
- Notch Per Direction
- 1-1

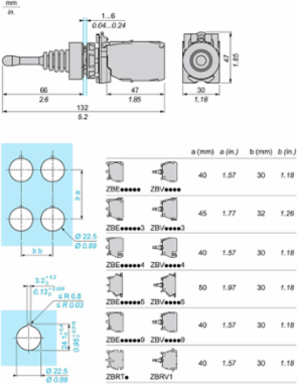

- Width
- 30 mm
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
Height47 mm
Contacts Materialsilver alloy (Ag/Ni)
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Contacts Type And Composition1 NO
[Ie] Rated Operational Current0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Mechanical Durability1000000 cycles
Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Depth132 mm
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- to 0 position spring return
- Shape Of Signaling Unit Head
- round
- Fixing Collar Material
- plastic
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- 54 mm long operating shaft
- Device Short Name
- XD5
Mounting Diameter22 mm
Product Or Component Typejoystick controller
Operator Direction Information4 directions
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Bezel Materialplastic
Operator Position Information5 positions
