Schneider Electric XB4BP31GEX Harmony XB4 ATEX D Green Projecting Push Button, 22mm, IP66, 1 NO
- MPN: XB4BP31GEX
- PPN: SCH-XB4BP31GEX
CAD
$124.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing

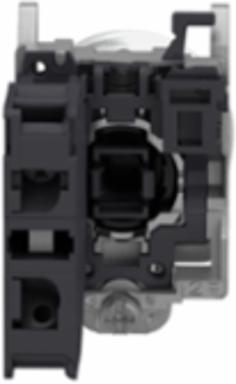

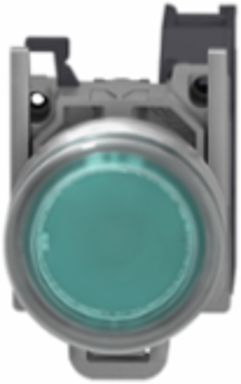

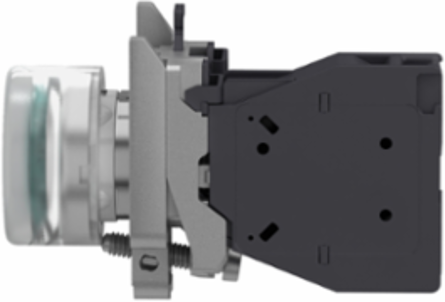

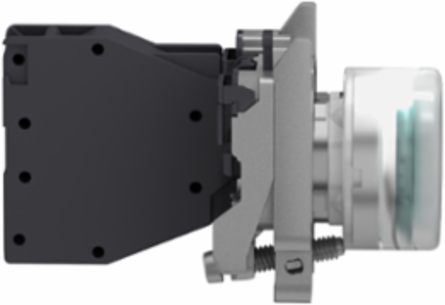

Description

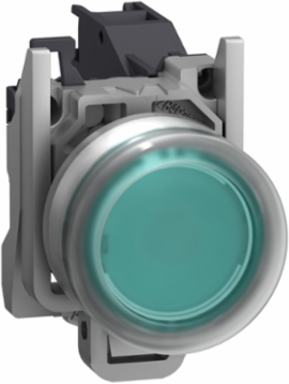

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This green pushbutton has a circular head shape with a booted, clear silicon flush push. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This pushbutton with booted clear silicon provides an ergonomic and visual interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Documentation & Downloads
Specifications
Key Specifications
- Gas Zone
- zone 1 - 2
- Sale Per Indivisible Quantity
- 1
- Range Of Product
- Harmony XB4
- Dust Zone
- zone 21 - 22
- Mounting Diameter
- 22 mm
- Product Or Component Type
- complete push-button
- Fixing Collar Material
- zamak
Contacts Type And Composition1 NO
Operator Additional Informationbooted (clear silicon)
Bezel Materialchromium plated metal
Operator Profilegreen projecting
Type Of Operatorspring return
Device Short NameXB4
Complementary
- Connections - Terminals
- screw clamp terminals, 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end EN/IEC 60947-1
- [Ui] Rated Insulation Voltage
- 415 V
- Embedding Depth
- 58 mm
- Contact Operation
- slow-break
- Operating Travel
- 1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)
- Positive Opening
- without
- Shape Of Signaling Unit Head
- round
- Width
- 46.2 mm
- Tightening Torque
- 0.8-1.2 N.m EN 60947-1
- Device Mounting
- fixing hole 22.5 mm +/- 0.2 mm EN/IEC 60947-1
Height30 mm
Operating Force3.962 N
[Ie] Rated Operational Current1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1
Fixing Center>= 30 x 40 mm support panel) 1-6 mm
Mechanical Durability5000000 cycles
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
MarkingII 2 GD || Ex db eb IIC Gb || Ex tb IIIC Db
Depth72 mm
Net Weight0.089 kg
Environment
- Product Certifications
- INERIS 04ATEX9004U
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
Ambient Air Temperature For Operation-20-75 °C
StandardsEN/IEC 60079-0:2009 || EN/IEC 60079-1:2009 || EN/IEC 60079-7:2009 || EN/IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
Ip Degree Of ProtectionIP66 IEC 60529
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
