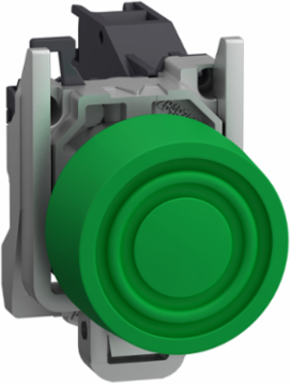

Schneider Electric XB4BPS31GEX Complete push button, Harmony XB4, Explosive atmosphere, pushbutton greeb with integrated boot

MPN: XB4BPS31GEX
PPN: SCH-XB4BPS31GEX

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$133.62/ EA

Qty:

Loading add to cart quantity...

Description

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This green pushbutton has a circular head shape with a booted, clear silicon flush push. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This pushbutton with booted clear silicon provides an ergonomic and visual interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Specifications

Operator Additional Information: booted (coloured silicon)

Dust Zone: zone 21 - 22

Type Of Operator: spring return

Fixing Collar Material: zamak

Contacts Type And Composition: 1 NO

Bezel Material: chromium plated metal

Device Short Name: XB4

Range Of ProductHarmony XB4

Mounting Diameter22 mm

Product Or Component Typecomplete push-button

Gas Zonezone 1 - 2

Sale Per Indivisible Quantity1

Operator Profilegreen projecting

Complementary

Height: 30 mm

Embedding Depth: 58 mm

Operating Travel: 1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)

[Ith] Conventional Free Air Thermal Current: 10 A IEC 60947-5-1

Marking: Ex tb IIIC Db || Ex db eb IIC Gb || II 2 GD

Connections - Terminals: screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1

[Ie] Rated Operational Current: 1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1

Mechanical Durability: 5000000 cycles

Depth: 72 mm

Device Mounting: fixing hole 22.5 mm +/- 0.2 mm IEC 60947-1

Operating Force3.962 N

Fixing Center>= 30 x 40 mm support panel) 1-6 mm

Positive Openingwithout

Shape Of Signaling Unit Headround

Net Weight0.08 kg

[Ui] Rated Insulation Voltage415 V

Contact Operationslow-break

Width46.2 mm

Tightening Torque0.8-1.2 N.m IEC 60947-1

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1808008EN

Toxic Heavy Metal Free: Yes

Reach Free Of Svhc: Yes

China Rohs Regulation: X

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationFree of Substances of Very High Concern above the threshold

WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity ProfileENVEOLI1808008EN

Environment

Product Certifications: INERIS 04ATEX9004U

Standards: IEC 60079-0:2009 || EN/IEC 60079-1:2009 || IEC 60079-7:2009 || IEC 60079-31:2009 || UL 60079-0 || UL 60079-1 || UL 60079-31 || ANSI/ISA 12.12.01 || CSA C22.2 No 213
