Schneider Electric XB4BPS42GEX Harmony XB4 Complete Push Button, 22mm, Red, IP66, ATEX Certified

MPN: XB4BPS42GEX
PPN: SCH-XB4BPS42GEX
UNSPSC: 39122216

$133.62

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

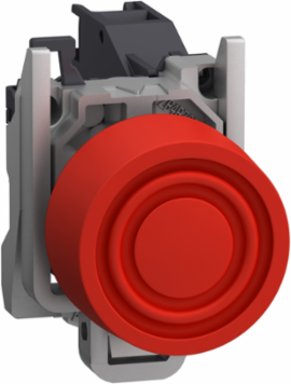

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This red pushbutton has a circular head shape with a booted, clear silicon flush push. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This pushbutton with booted clear silicon provides an ergonomic and visual interface for controlling machines. It comes with 1 NC contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.

Features

Metal bezel making it ideal for severe environments
Simple design for easy installation, servicing, modification and adaption
Compatible with standard 22mm cutout
High lifetime and less maitanence due to simple spring return mechanism
Easy replacement and servicing due to screw clamp connection
High vibration resistance with shake proof terminal screws
Designed to perform up to 5 million operations
Designed for use in dust zone 21-22
Designed for use in gas zone 1-2

Documentation & Downloads

Specifications

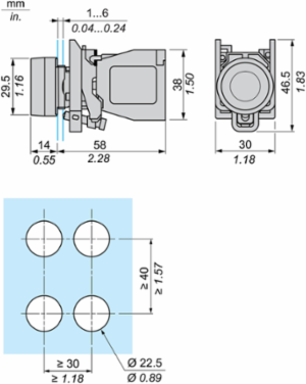

Key Specifications

Country of Origin	France
Depth	72 mm

Weight	100 g

Physical Attributes

Embedding Depth	58 mm

Complementary Attributes

Ie Rated Operational Current	1.9 A 380 V, AC, A600 IEC 60947-5-13 A 240 V, AC, A600 IEC 60947-5-16 A 120 V, AC, A600 IEC 60947-5-10.27 A 250 V, DC, Q300 IEC 60947-5-10.55 A 125 V, DC, Q300 IEC 60947-5-12.87 A 24 V, DC, Q300 IEC 60947-5-1

Ui Rated Insulation Voltage	415 V

Important Information Attributes

Fixing Center	>= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm>= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm
Carbon Footprint Of The Distribution Phase A4	0.0130771056, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0200569395, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0 kg CO2 eq., 0.0017395775
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308035EN
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	19 %
Compatibility Code	XB4
Contacts Type And Composition	1 NC
Dust Zone	zone 21 - 22
Gas Zone	zone 1 - 2
Mounting Diameter	22 mm
Operating Travel	1.688 mm engagement point)3.271 mm changing state point)4.424 mm total travel)
Operator Profile	red projecting
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Repair Index	A
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1
Software Version	v5.9.4
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Type Of Operator	spring return
Connections Terminals	screw clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
Data Source	extrapolated product
Width Nominal	46.2 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A IEC 60947-5-1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Marking	Ex tb IIIC Db, Ex db eb IIC Gb, II 2 GD
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.1264887307
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.7 kg CO2 eq., 0.708801898
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Average Percentage Of Recycled Metal Content	18 %
Bezel Material	chromium plated metal
Contact Operation	slow-break
Device Short Name	XB4
Fixing Collar Material	zamak
Mechanical Durability	5000000 cycles
Operating Force	2.873 N
Operator Additional Information	booted (coloured silicon)
Positive Opening	with
Product Or Component Type	complete push-button
Protective Treatment	TH
Returnability	Yes
Shape Of Signaling Unit Head	round
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	0.9 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Height Nominal	30 mm
Certificate Agency	INERIS 04ATEX9004U
Customs Code	8536509035
Product Repair Index Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Functional Unit Description	This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional Unit Unit	Unit
Pep End Of Validity Date Calculated	2028-08-01

Environment Attributes Main

Ambient Air Temperature For Operation	-20-75 °C, -20-75 °C
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308035EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	18 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.8701642512
Environmental Disclosure	ENVPEP2308035_V1-EN
Ip Degree Of Protection	IP66 IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2308035_V1-EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
