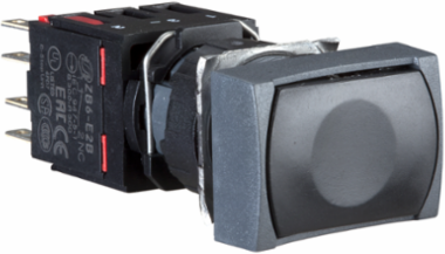

Schneider Electric XB6DA22B Harmony XB6 16mm Black Rectangular Flush Pushbutton, NEMA 13, 1NC, Spring Return
- MPN: XB6DA22B
- PPN: SCH-XB6DA22B
CAD
$30.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This pushbutton from Schneider Electric is a robust solution designed for automation and control applications. The Harmony XB6 model features a flush rectangular design that seamlessly integrates into various control panels while ensuring reliable operation. Rated for NEMA 13 environments, it includes a normally closed (1NC) contact configuration and operates with a convenient spring return mechanism. This component enhances user interaction and contributes to the efficiency of your automated systems, making it an essential addition for reliable control in industrial settings.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A 120 V AC-15 B300, 1.5 A 240 V AC-15 B300, 0.1 A 250 V DC-13 R300, 0.22 A 125 V DC-13 R300
- Operating Travel
- 2 mm NC changing electrical state, 3.5 mm total travel
- Electrical Durability
- 1,000,000 cycles AC-15 230 V, 1,000,000 cycles DC-13 230 V
- Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Contact Operation
- Slow-break
- Mounting Diameter
- 16 mm (0.63 in)
- Overall Height
- 18 mm (0.71 in)
- Connections - Terminals
- Faston connectors 2.8 x 0.5 mm
- Operator Type
- Spring return
- Contacts Material
- Silver alloy (Ag/Ni)
- IP Degree of Protection
- IP65 IEC 60529
- Product Certifications
- GOST, CCC, UL, CSA
- Electrical Shock Protection Class
- Class II IEC 61140
- Shock Resistance
- 30 g 18 ms, 50 g 11 ms half sine wave IEC 60068-2-27
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Toxic Heavy Metal Free
- Yes
- Reach Free Of SVHC
- Yes
- Circularity Profile
- ENVEOLI1710010EN
- Device Short Name
- XB6
- Product Or Component Type
- Complete push-button
Operating Force4.5 N NC changing electrical state
Mechanical Durability2,000,000 cycles
Rated Insulation Voltage250 V IEC 60947-1
Short-Circuit Protection6 A cartridge fuse gG
Contact Configuration1 NC (Normally Closed)
Overall Width24 mm (0.94 in)
Overall Depth57 mm (2.24 in)
Shape of Signaling Unit HeadRectangular
Operator ProfileBlack flush, unmarked
Bezel MaterialPlastic
NEMA Degree of ProtectionNEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94, NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94
StandardsUL 508, IEC 60947-1, IEC 60947-5-1, JIS C 852, CSA C22.2 No 14, JIS C 4520, IEC 60947-5-5
Vibration Resistance+/- 3 mm 2-500 Hz, 5 g 2-500 Hz IEC 60068-2-6
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Mercury FreeYes
RoHS Exemption InformationYes
Environmental DisclosureENVPEP1710010EN
Protective TreatmentTC
Range Of ProductHarmony XB6
Operating PositionAny position
