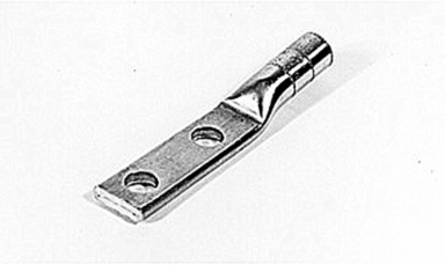

Blackburn AL 350 NTN 90 Aluminum Compression Lug 6.687 Inch Length, 2.188 Inch Barrel, 90°C Rating

MPN: AL 350 NTN 90
PPN: T-B-AL 350 NTN 90

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$116.43/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum Tin-Plated Two-Hole NEMA Lugs - 90 Degree lug, concentric 350, 336.4 compact 350, ACSR 266.8 (26/7) and 336.4 (18/1), installing dies 96,299,655,1 1/8-1, 705,13A. Unbent length 6.687 inches, Barrel 2.188 inches, Pad 3.625 inch long x 1.555 inch wide x .360 inch thick. Nominal length 4.047 inches.

Features

Dual-Rated for Use with Aluminum and Copper Conductors.
Made of Aluminum for High Strength and High Conductivity.
Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
All Lugs Marked with Conductor Size and Die References for Easy Identification.
Meets or Exceeds ANSI C119.4 Specifications.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121448 Wire or cable compression connector

Brand Name: Blackburn

Special Features: Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.

Standard: ANSI C119.4

Conductor Range: concentric 350, 336.4 compact 350, ACSR 266.8 (26/7) and 336.4 (18/1)

Finish: Tin Plated

Temperature Rating: 90 Degrees Celsius

IGCC4668 Wire or cable compression connector

TypeCompression Lug

ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations

SizeUnbent length 6.687 inches, Barrel 2.188 inches, Pad 3.625 inch long x 1.555 inch wide x .360 inch thick. Nominal length 4.047 inches.

MaterialAluminum

InsulationNo

Bolt Size1/2 inch

Packaging

Outer Quantity: 25

Weight Uom: 0.41 lbs. Each

Outer Dimensions (inches)13.18x7.75x7
