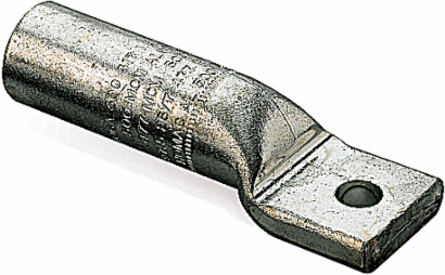

Blackburn AL 4/0-48 RTN Aluminum Compression Lug, 3-9/16 Inch x 1-3/16 Inch, Dual Rated for Copper & Aluminum
Blackburn AL 4/0-48 RTN Aluminum Compression Lug, 3-9/16 Inch x 1-3/16 Inch, Dual Rated for Copper & Aluminum
- MPN: AL 4/0-48 RTN
- PPN: T-B-AL 4/0-48 RTN
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$129.46/ EA
Description
Aluminum Tin-Plated One-Hole Lugs - right-hand lug, concentric 4/0, compressed 4/0, installing dies 840,298,TX
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Standard
- ANSI C119.4
- Conductor Range
- 4/0
- Finish
- Tin Plated
- Temperature Rating
- 90 Degrees Celsius
- Bolt Size
- 1/2 inch
IGCC4668 Wire or cable compression connector
TypeCompression Lug
ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations
Size3-9/16 inch long x 1-3/16 inch wide
MaterialAluminum
InsulationNo
Conductor TypeConcentric
Packaging
- Outer Quantity
- 50
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
