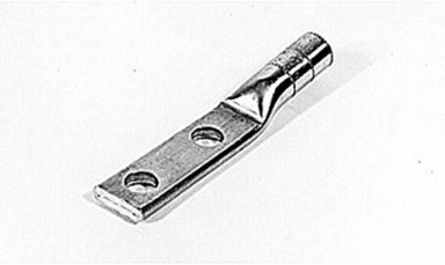

Blackburn AL 400 N 90 Aluminum Compression Lug, 6.875 Inch Unbent Length, Dual Rated for Aluminum & Copper
- MPN: AL 400 N 90
- UPC: 783786976904
- PPN: T-B-AL 400 N 90
CAD
$85.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Two-Hole NEMA Lugs - straight lug, concentric 400 and 397.5 compact 350, ACSR 336.4(26/7) and 397.5 (18/1) and 336.4 (18/1), installing dies 96,472,655,1 1/8-1,1 1/8-2,705,316,13A, 90 Degree Bend. Unbent length 6.875 inches, Pad 3.562 inch x 1.625 inch wide x .40 inch thick. Nominal length 4.275 inches
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Standard
- ANSI C119.4
- Conductor Range
- concentric 400 and 397.5 compact 350, ACSR 336.4(26/7) and 397.5 (18/1) and 336.4 (18/1)
- Insulation
- No
IGCC4668 Wire or cable compression connector
TypeCompression Lug
ApplicationGeneral Purpose Lugs for Aluminum and Copper Terminations
SizeUnbent length 6.875 inches, Pad 3.562 inch x 1.625 inch wide x .40 inch thick. Nominal length 4.275 inches
MaterialAluminum
Bolt Size1/2 inch
Packaging
- Outer Quantity
- 25
- Weight Uom
- 0.44 lbs. Each
Outer Dimensions (inches)13.18x7.75x7
