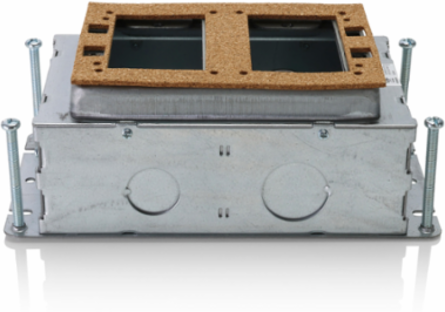

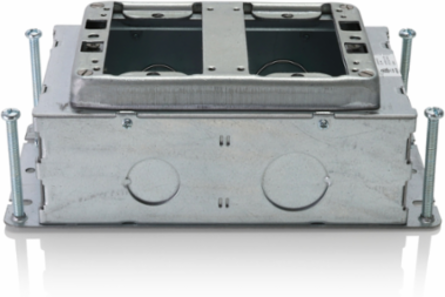

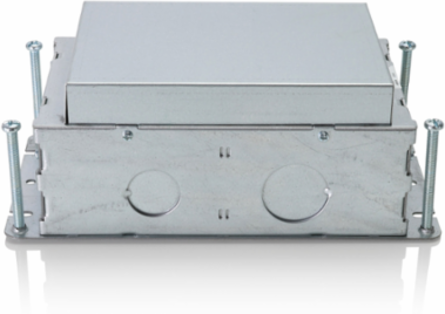

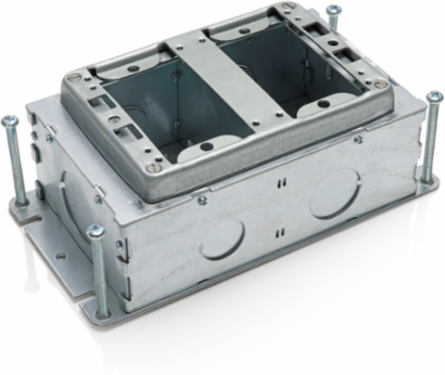

Leviton FBDR2 Concrete Floor Box, 2-Gang, Deep
- MPN: FBDR2
- UPC: 078477985342
- PPN: LEV-FBDR2
CAD
$97.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2-Gang Deep Rectangle Stamped Steel Floor Box for Concrete Installing, Includes 4 Leveling Screws and Gasket for Tile Frame Installation
Features
- Flush to the floor - once floor box is buried and cured, the tile ring and plates can be installed flush to the finished floor
- Height adjustable - floor box includes screws to height-adjust for thicker concrete slab floors
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Material Specifications
| Body Material | Steel |
|---|---|
| Grounding Screw | Steel |
| Clamp Nuts | Steel |
|---|
Mechanical Specifications
| Conduit Feeds | Sides, Ends, Bottom |
|---|---|
| Cubic Inch Capacity | 92 |
| Minimum Depth Of Pour | 3.25 inch |
| Conduit Selection | Sides: Two 3/4 inch, 1 inch trade size K.O, Ends: Two 1-1/4 inch trade size K.O., Bottom: Two 1 inch, 1-1/4 inch trade size K.O. |
|---|---|
| Dimensions | 9.3 inch x 4.8 inch x 3.25 inch |
| Wire Gauge | Two Pre-Installed 14 AWG ground wire, 6 inch length |
Product Features
| Color | Steel |
|---|---|
| Feature | 2-1/4 inch pre pour Adjustment, 1/2 inch post pour adjustment |
| Gasket | Cork |
| Type | Concrete |
| Device Type | Flush Concrete Floor Box |
|---|---|
| Function | Can be used with all types of flooring including wood, tile, terrazzo, carpet, and concrete |
| Receptacle Compatibility | Any standard duplex receptacle |
Warranty
| Warranty | 2-Year Limited |
|---|
