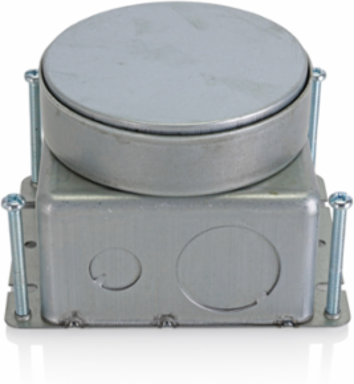

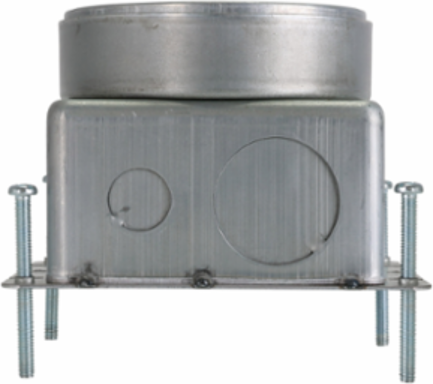

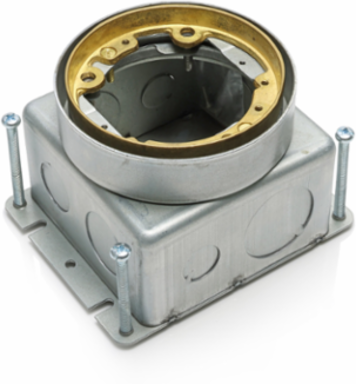

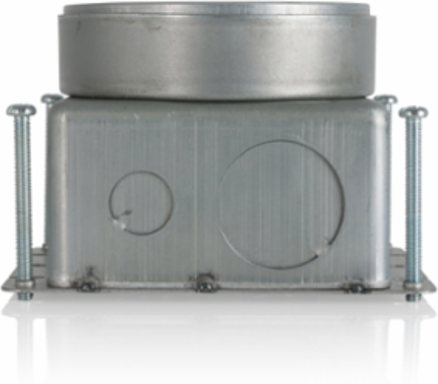

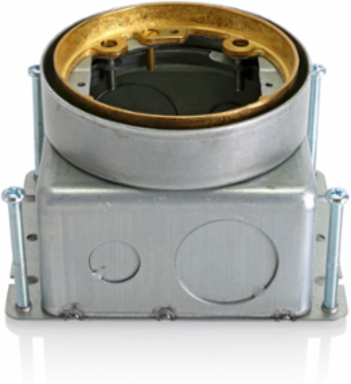

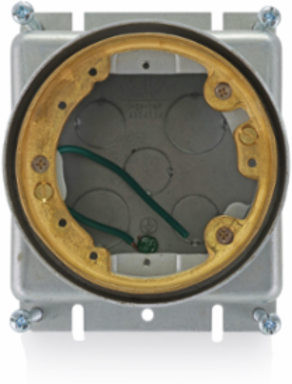

Leviton FBDC1 Concrete Floor Box, 1-Gang, Deep
- MPN: FBDC1
- UPC: 078477985434
- PPN: LEV-FBDC1
CAD
$74.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1-Gang Deep Round Stamped Steel Floor Box for Concrete Installing, Includes 4 Leveling Screws
Features
- Flush to the floor - once floor box is buried and cured, the plates can be installed flush to the finished floor
- Height adjustable - floor box includes screws to height-adjust for thicker concrete slab floors
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Material Specifications
| Body Material | Steel |
|---|---|
| Grounding Screw | Steel |
| Cover Material | Steel |
|---|
Mechanical Specifications
| Conduit Feeds | Sides, Ends, Bottom |
|---|---|
| Cubic Inch Capacity | 57 |
| Minimum Depth Of Pour | 3.90 inch |
| Conduit Selection | Sides: Two 1/2 inch, Two 1-1/4 inch trade size K.O, Ends: Two 1 inch Two 3/4 inch trade size K.O., Bottom: Two 3/4 inch, Three 1/2 inch Trade size K.O. |
|---|---|
| Dimensions | 6.00 inch x 4.82 inch x 3.90 inch |
| Wire Gauge | Pre-Installed 14 AWG ground wire, 6 inch length |
Product Features
| Color | Steel |
|---|---|
| Feature | 2-1/4 inch pre pour Adjustment, 1/2 inch post pour adjustment |
| Gasket | Cork |
| Receptacle Compatibility | Any standard duplex receptacle |
| Device Type | Flush Concrete Floor Box |
|---|---|
| Function | Can be used with all types of flooring including wood, tile, terrazzo, carpet, and concrete |
| Openings | Flip Lid; Doors open 180° |
| Type | Concrete |
Warranty
| Warranty | 2-Year Limited |
|---|
