Leviton

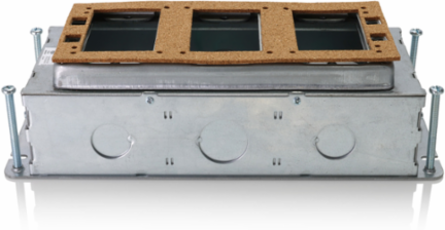

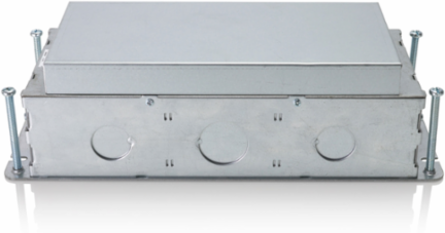

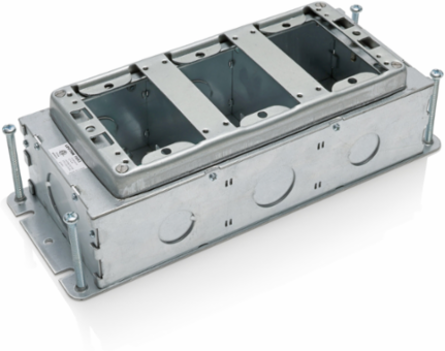

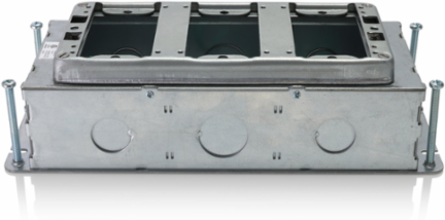

Leviton FBDR3 Concrete Floor Box, 3-Gang, Deep

Concrete Floor Box, 3-Gang, Deep
Concrete Floor Box, 3-Gang, Deep
Concrete Floor Box, 3-Gang, Deep
Concrete Floor Box, 3-Gang, Deep
  • MPN: FBDR3
  • UPC: 078477985359
  • PPN: LEV-FBDR3

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$122.79/ EA

Description

3-Gang Deep Rectangle Stamped Steel Floor Box for Concrete Installing, Includes 4 Leveling Screws and Gasket for Tile Frame Installation

Features

  • Flush to the floor - once floor box is buried and cured, the tile ring and plates can be installed flush to the finished floor
  • Height adjustable - floor box includes screws to height-adjust for thicker concrete slab floors

Specifications

Material Specifications

Body Material
Steel
Grounding Screw
Steel
Clamp NutsSteel

Mechanical Specifications

Conduit Feeds
Sides, Ends, Bottom
Cubic Inch Capacity
132
Minimum Depth Of Pour
3.25 inch
Conduit SelectionSides: Two 1 inch, Four 3/4 inch trade size K.O, Ends: Two 1-1/4 inch trade size K.O., Bottom: Three 1 inch, 1-1/4 inch trade size K.O.
Dimensions12.5 inch x 4.8 inch x 3.25 inch
Wire GaugeThree Pre-Installed 14 AWG ground wire, 6 inch length

Specifications

Country of Origin
China
RoHS CompliantFalse

Product Features

Color
Steel
Feature
2-1/4 inch pre pour Adjustment, 1/2 inch post pour adjustment
Gasket
Cork
Type
Concrete
Device TypeFlush Concrete Floor Box
FunctionCan be used with all types of flooring including wood, tile, terrazzo, carpet, and concrete
Receptacle CompatibilityAny standard duplex receptacle

Warranty

Warranty
2-Year Limited

Downloads
